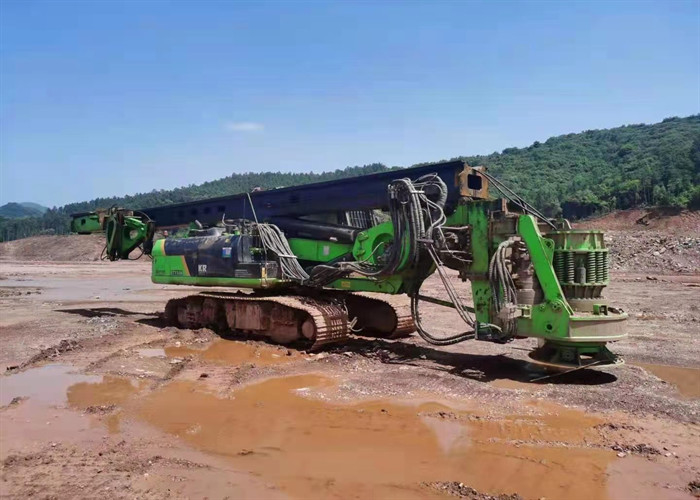

High Quality Reliable Performance Equipment Water Well Crawler Used Hydraulic Rotary Drilling Rig
Our Advantages
1.Obtained more than 40 patents and exported to more than 40 countries.
2.A professional R&D team with 10 years of industry experience.
3.Passed ISO9001 quality management system certification, obtained CE certification.
4.Engineer overseas service. Ensure the quality of the machine and good after - sales service.
5.Manufacturer of the most complete series of small rotary drilling rig in China.
6.The largest export volume of small rotary drilling rig in China.
7.The most rotary drilling rigs in Australian market.
8.First brand of small rotary drilling rig in Thailand market
| Performance Parameter |
Unit |
Value |
| Max. torque |
kN.m |
220 |
| Max. drilling diameter |
mm |
1800/2000 |
| Max. drilling depth |
m |
64/51 |
| Working speed |
rpm |
6~28 |
| Max. cylinder pressure |
kN |
210 |
| Max. hoist capacity |
kN |
220 |
| Main winch pull force |
kN |
230 |
| Main winch speed |
m/min |
60 |
| Auxiliary winch pull force |
kN |
90 |
| Auxiliary winch speed |
m/min |
60 |
| Max. cylinder stroke |
mm |
5000 |
| Mast side raking |
° |
±5 |
| Mast raking forward |
° |
5 |
| System pressure |
mpa |
35 |
| Pilot pressure |
mpa |
4 |
| Max. walking speed |
km/h |
2.2 |
| Max. pull force |
kN |
430 |
| Operating height |
mm |
21082 |
| Operating width |
mm |
4300 |
| Transport height |
mm |
3360 |
| Transport width |
mm |
3000 |
| Transport length |
mm |
15300 |
| Total weight |
t |
66 |
| Type |
Model |
Manufacturer Year |
Working Hours |
Classis |
Kelly bar/Max.depth |
| KR150-5 |
16KR150G-005 |
20171102 |
5000 |
ZG3255 |
325-4*10
37m |
| KR220C-12 |
19KR220C012 |
20191207 |
1788 |
CAT330D |
440-4*13.5
51m |
| KR220C-16 |
20KR220C016 |
20201024 |
1873 |
CAT330D |
440-4*13.5
51m |
| KR220C-15 |
20KR250C015 |
202005 |
1994 |
CAT330D |
440-4*13.5
51m |
| KR90C-19 |
18KR90C019 |
20180507 |
3738 |
CAT318D |
273-3*9.5
24m |
| KR90L-23 |
20KR90L023 |
20200714 |
1500 |
CLG915E |
299-4*8.5
28m |
| KR90L-26 |
19KR90A026 |
20200102 |
2258 |
CLG915E |
299-4*8.5
28m |
FAQ
1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
3: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
