Hot-selling Products Construction Projects Crawler Secondhand Hydraulic Drill Rig Auger Machines

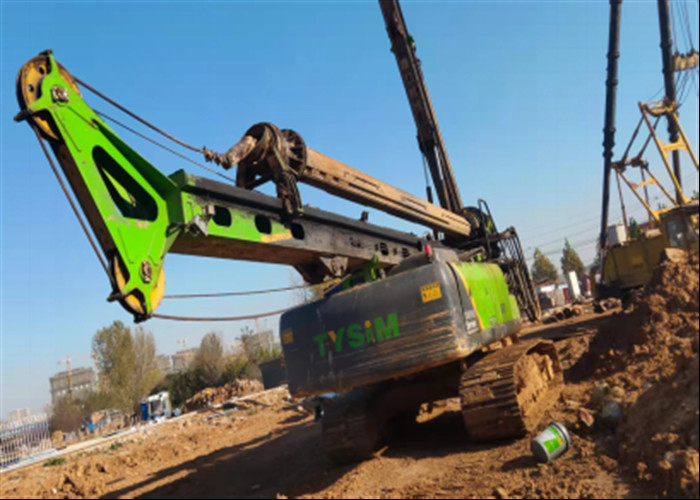

About TYSIM KR125A Rotary drilling rig
1.Fully electronic controlled rotary drilling machine.
2.Simple operation process.
3.GB certification and EU EN16228 standard certification.
4.Wide application range, high construction efficiency, stable performance.
5.High qualtiy, lower cost.
| Performance Parameter |
Unit |
Value |
| Max. torque |
kN.m |
125 |
| Max. drilling diameter |
mm |
1300/1500 |
| Max. drilling depth |
m |
37/43 |
| Working speed |
rpm |
6~30 |
| Max. cylinder pressure |
kN |
100 |
| Max. hoist capacity |
kN |
150 |
| Main winch pull force |
kN |
110 |
| Main winch speed |
m/min |
78 |
| Auxiliary winch pull force |
kN |
60 |
| Auxiliary winch speed |
m/min |
60 |
| Max. cylinder stroke |
mm |
3200 |
| Mast side raking |
° |
±3 |
| Mast raking forward |
° |
5 |
| System pressure |
mpa |
34.3 |
| Pilot pressure |
mpa |
3.9 |
| Max. walking speed |
km/h |
3 |
| Max. pull force |
kN |
220 |
| Operating height |
mm |
15480 |
| Operating width |
mm |
3000 |
| Transport height |
mm |
3645 |
| Transport width |
mm |
3000 |
| Transport length |
mm |
14035 |
| Total weight |
t |
35 |
| Number |
Type |
Model |
Manufacturer Year |
Working Hours |
Classis |
| 1 |
KR125-55 |
19KR125G055 |
20191030 |
4125 |
GE220H |
| 2 |
KR125-56 |
19KR125G056 |
20191123 |
3225 |
GE220H |
| 3 |
KR125-60 |
20KR125G060 |
20200806 |
3085 |
GE220H |
| 4 |
KR125-18 |
18KR125L018 |
20180124 |
4356 |
CLG920E |
FAQ
1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
3: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
