Small Bore Pile Machine KR50 Screw Driver For Construction
Small Bore Pile Machine
,KR50 Screw Pile Driver
,1200mm rotary drilling rig

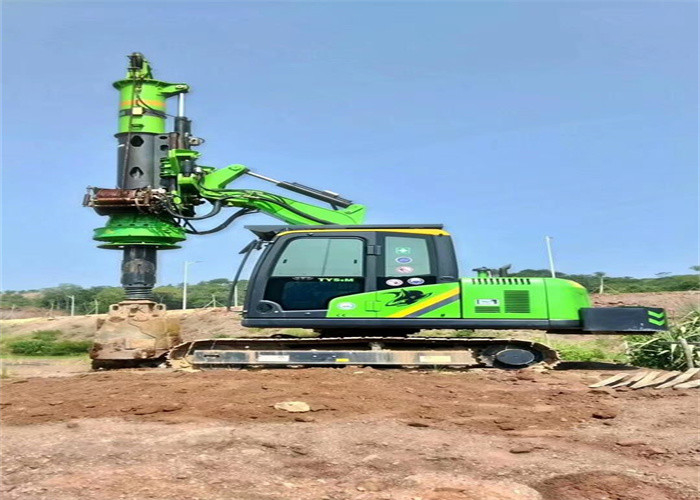

TYSIM small bore pile machine KR50 screw pile driver for construction
Feature
1. It is easy to operate and requires some operating experience.
2. It has the advantages of flexible maneuverability, small tonnage.
3. Wide application range, high construction efficiency, stable performance.
4. Head adopt reversible design
5. Lower cost, high efficency.
| Performance Parameter | Unit | Value |
| Max. torque | kN.m | 50 |
| Max. drilling diameter | mm | 1200 |
| Max. drilling depth | m | 16/20/24 |
| Working speed | rpm | 7~30 |
| Max. cylinder pressure | kN | 75 |
| Max. hoist capacity | kN | 90 |
| Main winch pull force | kN | 65 |
| Main winch speed | m/min | 48 |
| Auxiliary winch pull force | kN | 20 |
| Auxiliary winch speed | m/min | 38 |
| Max. cylinder stroke | mm | 1100 |
| Mast side raking | ° | ±6 |
| Mast raking forward | ° | +90~-30 |
| System pressure | mpa | 34.3 |
| Pilot pressure | mpa | 3.9 |
| Max. walking speed | km/h | 5.6 |
| Max. pull force | kN | 220 |
| Operating height | mm | 10740 |
| Operating width | mm | 2800 |
| Transport height | mm | 3040 |
| Transport width | mm | 2800 |
| Transport length | mm | 12850 |
| Total weight | t | 25 |
Product Details
FAQ
1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
3: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
