RMT100A Hydrocyclone Drilling Mud Desander 100m3/M Mud Slurry Recycling Machine
RMT100A Drilling Mud Desander
,Drilling Mud Desander 100m3/m
,18.5KW hydrocyclone desander
RMT100A hydrocyclone desander for boring construction, mud slurry recycling machine
Main Feature
Improve the drilling rate, realize mud recycle and reduce the cost of drilling mud.
The Mud Recycling System, self-developed, mainly used to recycle the slurry essence piling constructions of circulation & counter flush drilling and shied in constructions of slurry balanced, can decrease the slurry discharge, cut tool-sticking accidents, and improve the drilling efficiency.
| Technical specification | |||||
| Main technical parameter | RMT100A | RMT150 | RMT1200 | RMT250 | RMT500 |
| Max capacity(m³/m) | 100 | 150 | 200 | 250 | 500 |
| Out point(mm) | d50=0.04 | d50=0.04 | d50=0.06 | d50=0.06 | d50=0.06 |
| Total Power (KW) | 20.7 | 24.2 | 48 | 58 | 175.8 |
| Main pump motor power (KW) | 18.5 | 22 | 45 | 55 | 55 x 2 |
| Vibration motor power (KW) | 1.1 x 2 | 1.1 x 2 | 1.5 x 2 | 1.5 x 2 | 1.8 x 6 |
| Transportation dimension (m) | 3.0 x 1.8 x 2.3 | 3.0 x 1.8 x 2.3 | 4.16 x 2.3 x2.7 | 4.16 x 2.3 x2.7 | |
| Largest dimension (m) | 3.2 x 2.0 x2.3 | 3.2 x 2.0 x2.3 | 4.5 x 2.3 x2.7 | 4.5 x 2.3 x2.7 | 10 x 3.2 x 5.6 |
| Total weight (kg) | 2550 | 2600 | 5300 | 5400 | 3000 |

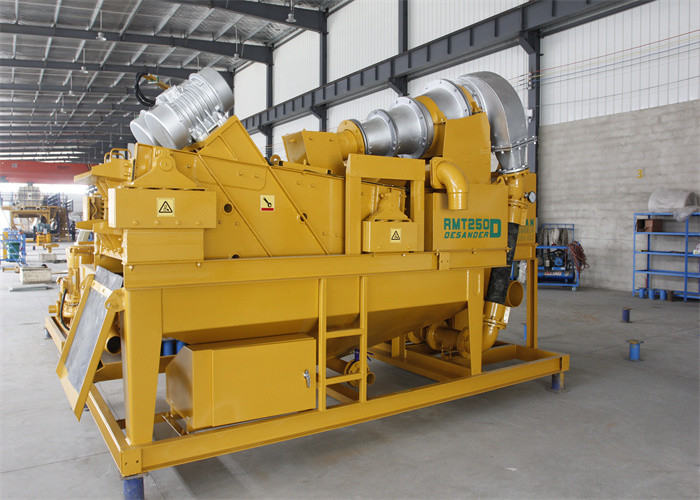

Product details
FAQ
1.Can it be used in a cold environment?
Yes, we have a construction case of minus 50 degrees to ensure quality!
2.Is there any after-sale service?
Yes, engineer on- site service available.
3.Why Choose Us?
1.APIE is the sole factory manufacturing piling machinery in China, best quality & best service.
2.Supply professional customized service to meet all your requirements.
3.Competitive price.
