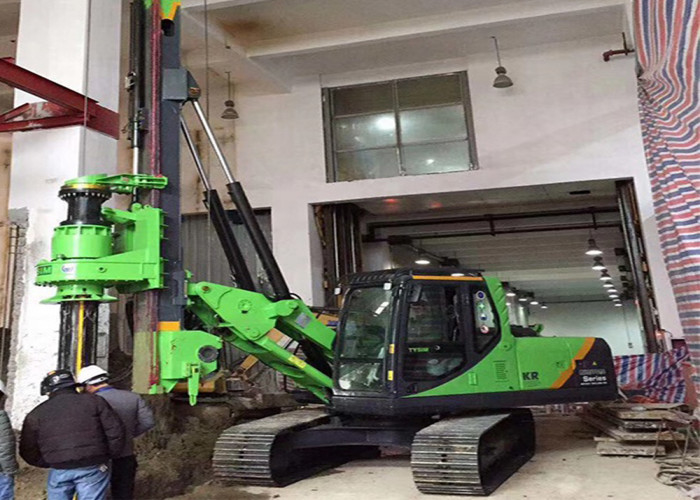

TYSIM Best Selling Construction Works Second Hand Used Rotary Bored Piling Rig Machine
About TYSIM Rotary drilling rig
1. Simple operation process.
2. GB certification and EU EN16228 standard certification.
3. Wide application range, high construction efficiency, stable performance.
4. Mast automatically.
| Performance Parameter |
Unit |
Value |
| Max. torque |
kN.m |
60 |
| Max. drilling diameter |
mm |
1200 |
| Max. drilling depth |
m |
20 |
| Working speed |
rpm |
8~30 |
| Max. cylinder pressure |
kN |
60 |
| Max. hoist capacity |
kN |
90 |
| Main winch pull force |
kN |
65 |
| Main winch speed |
m/min |
48 |
| Auxiliary winch pull force |
kN |
20 |
| Auxiliary winch speed |
m/min |
48 |
| Max. cylinder stroke |
mm |
2000 |
| Mast side raking |
° |
±3 |
| Mast raking forward |
° |
4 |
| System pressure |
mpa |
34.3 |
| Pilot pressure |
mpa |
3.9 |
| Max. walking speed |
km/h |
2.8 |
| Max. pull force |
kN |
98 |
| Operating height |
mm |
10600 |
| Operating width |
mm |
2690 |
| Transport height |
mm |
3250 |
| Transport width |
mm |
2690 |
| Transport length |
mm |
9500 |
| Total weight |
t |
20 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
3: What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Cash;
Language:Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
