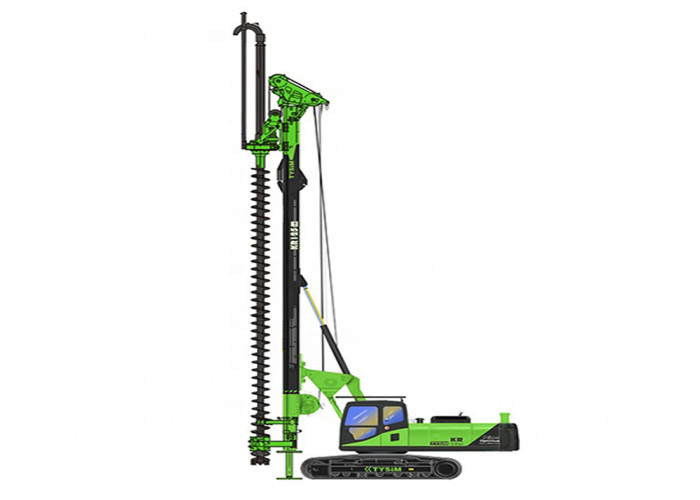

125kNm CFA Multifunctional Drilling Rig Rotary Hole Hydraulic Auger Piling Machine
125kNm Multifunctional Drilling Rig
,CFA Multifunctional Drilling Rig
,Hydraulic auger piling machine
Reliable Performance Hydraulic CFA Continuous Multifunctional Rotary Hole Auger Drilling Piling Rig
1.Expansion chassis(double-width ). The operating width is 3600mm and the transport width is 2600mm. The equipment has good passability and high construction stability.
2.High traction for walking. The whole machine is flexible can meet the requirement of 20° ramp for normal driving;
3.The whole machine is designed in accordance with EU standards, with high construction stability;
4.Customized high-power engine with dual drive power head and large output torque, which can meet the requirements of complex formation construction and high construction efficiency;
5.It can realize the large drilling diameter construction through different drilling tools and construction methods;
6.Customized low mast, lower center of gravity, improve construction stability
Technical Specification
|
Technical specification of KR125M rotary drilling rig(CFA &rotary drilling rig) |
||
| CFA construction method | Max. diameter | 700mm |
| Max. drilling depth | 15m | |
| Main winch line pull | 240 kN | |
|
Rotary drilling construction method
|
Max. Diameter | 1300 mm |
| Max. drilling depth | 37m | |
| Main winch line pull | 120 kN | |
| Main winch line speed | 78 m/min | |
| Working parameters | Max. torque | 125 kN.m |
| Auxiliary winch line pull | 60 kN | |
| Auxiliary winch line speed | 60 m/min | |
| Mast inclination(lateral) | ±3° | |
| Mast inclination(forward) | 3° | |
| Max. operating pressure | 34.3 MPa | |
| Pilot pressure | 3.9 MPa | |
| Travel speed | 2.8 km/h | |
| Traction force | 204 kN | |
| Operating size | Operating height | 18200 mm(CFA)/14800mm(rotary drilling) |
| Operating width | 2990 mm | |
| Transport size | Transport height | 3500 mm |
| Transport width | 2990 mm | |
| Transport length | 13960 mm | |
| Total weight | Overall weight | 35 t |
Product details
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
