Vibro Hammer Introduction
A vibro hammer, often referred to as a vibratory hammer, is a crucial piece of machinery in construction and foundation engineering. Its primary function is to drive or extract piles from the ground by employing high-frequency vibrations.
How a Vibro Hammer Operates:
-

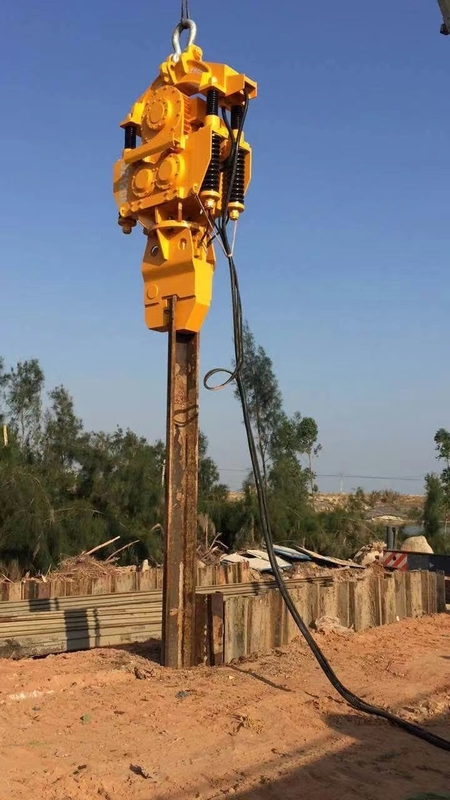

Connection to the Pile: The vibro hammer is securely attached to the pile that needs installation or removal.
-
Generation of Vibrations: It produces high-frequency vibrations, which are conveyed to the pile through a clamp or similar attachment.
-
Effect on Soil: The vibrations loosen the soil particles surrounding the pile, significantly decreasing the resistance and friction that the pile faces during insertion.
-
Driving or Extracting the Pile: As the pile vibrates, it is driven deeper into the earth with less resistance. Conversely, when extracting a pile, the vibrations help to free it from the encasing soil, facilitating easier removal.
This method is efficient for both installing and extracting piles, making it a preferred choice in various construction projects.
Benefit from the following features:
Vibro hammers are remarkable construction tools that offer numerous benefits. Here are some key advantages along with an interesting statistic:
Top 5 Benefits of APIE Vibro Hammers:
-
Accelerated Piling: These machines drive or extract piles significantly quicker than traditional methods, enhancing overall project efficiency and helping to reduce both time and labor expenses.
-
Reduced Noise Pollution: One of the standout features of vibro hammers is their quieter operation, making them ideal for use in urban settings and near residential areas where minimizing noise is essential.
-
Eco-Friendly Operation: Vibro hammers are considered to have a lower environmental impact due to their quieter functioning and minimal vibration effects on the surrounding ecosystem, which is especially vital in delicate habitats.
-
Adaptability: They are effective across a variety of soil types, showcasing versatility for different construction needs. Vibro hammers perform well in both cohesive and granular soil conditions.
-
Lower Risk of Damage: Using vibratory methods reduces stress on the piles, significantly minimizing the chances of damage during installation. Unlike impact hammers, which can cause twisting or bending if a pile encounters hard surfaces due to improper ground assessment, vibro hammers provide a more reliable and durable foundation solution.
Technical Parameters
| Motor power | 120 kW |
| Frequency | 1000 r/min |
| Eccentric moment | 600 nm |
| Centrifugal force | 657 kN |
| Amplitude(free hanging) | 10.5mm |
| Max. Extraction force | 400 kN |
| Overall Dimensions(H*L*W) | 2.84m*1.72m*1.4m |
| Total weight | 7400kg |
| Type of Hydraulic Clamp | ZYJG2-II/ZYJG2-III |
| Generator capacity | 350kw |
| Min. Crane capacity | 70t |
FAQ
Q: In which situations are the products most beneficial?
A: Customers have the option to select the model that suits their needs, or they can provide us with the pile dimensions and a ground condition report. We can then recommend the most appropriate product for their specific requirements.
Q: Can you offer customization?
A: Yes, we provide OEM services to meet your unique specifications.
Q: Is there after-sales support for the products?
A: Absolutely! We offer a range of after-sales services, including:
- High-quality products at competitive prices.
- OEM support tailored to your needs.
- Overseas after-sales service for enhanced customer satisfaction.
