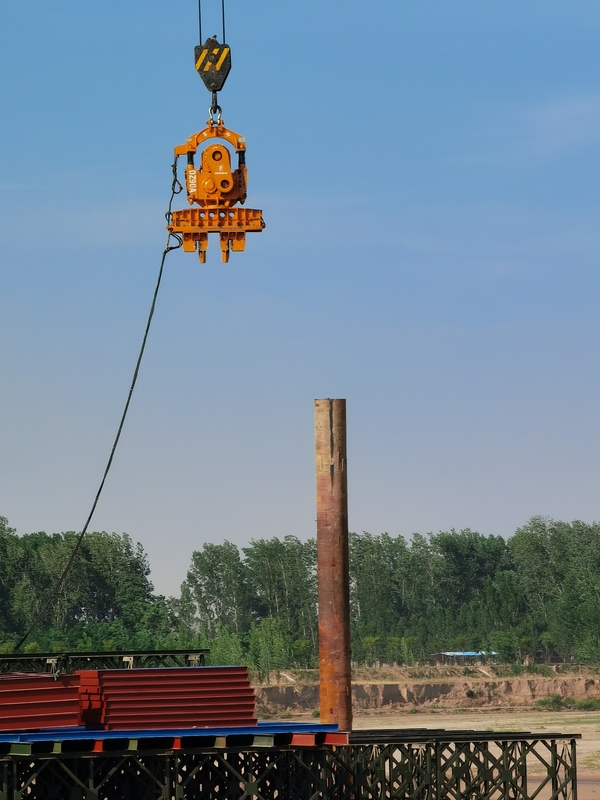

Pile Driver Attachment 90kw 120kw 150kw Electric Sheet Pile Vibro Hammer
high efficiency vibro hammer
,concrete vibratory hammer for excavator
,building clamp hydraulic vibratory hammer
China Manufacturer AP Series Electric Vibro Hammer For Drive Casing And Pipe
Product Application
1. It is a hammer with higher effective, widely applied to the work including piling with concrete, piling with broken stones, piling with lime, piling with sand bags, plastic sheet water discharging piling.
2. Assembled with our hydraulic clamp, it can extract steel piles and concrete piles, it is applicable for most regions in our own country. It is a good equipment for the foundations in building, road, highways, railways, airport, bridges, harbors and docks.
Technical Parameters
| Model | Unit | AP45A | AP60A | AP90A | AP120A | AP150A |
| Motor power | kW | 45 | 60 | 90 | 120 | 150 |
| Frequency | r/min | 1100 | 1100 | 1050 | 1000 | 940 |
| Eccentric moment | Nm | 245 | 360 | 460 | 700 | 1000 |
| Centrifugal force | kN | 363 | 450 | 570 | 786 | 1000 |
| Amplitude | mm | 8.9 | 9.6/10 | 10.3 | 12.2 | 12.5 |
| Max.extraction force | kN | 200 | 200 | 240 | 400 | 400 |
| Overall dimensions(H*L*W) | m | 2.12*1.29*1.23 | 2.24*1.21*1.37 | 2.56*1.53*1.1 | 2.84*1.72*1.4 | 3.3*1.71*1.5 |
| Total weight | kg | 3150 | 4320 | 5580 | 7120 | 9535 |
FAQ
Q.Where are the products more advantageous?
A.Customer can choose the model they need, or they provide the pile dimension and ground condition report for us, we can recommend the suitable product to them.
Q.Can you customize?
A.we can do the OEM.
Q.Does the product have after sales service?
A.More services we can provided:
1.Great quality with reasonable price.
2.OEM Support.
3.After-sales Service Overseas.
