Clamshell Telescopic Arm
>
|
|
| Place of Origin | China |
| Brand Name | APIE |
| Model Number | KM150 |

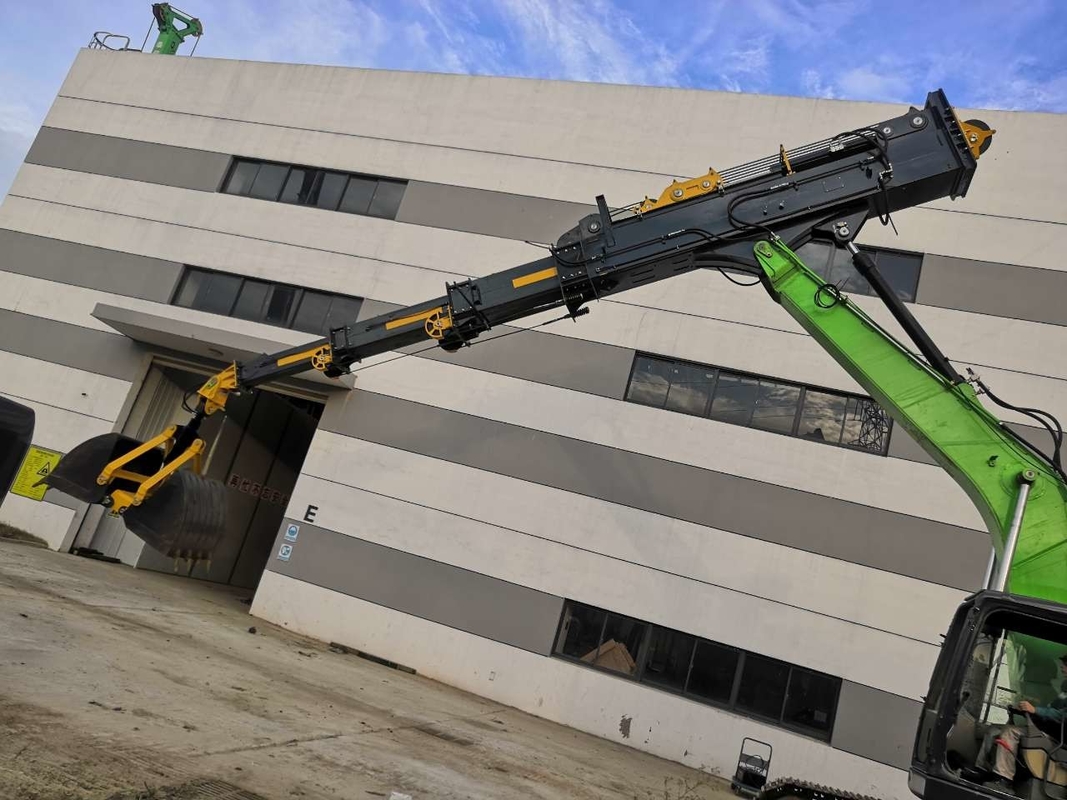

The Expandable Clamshell Arm is an innovative and powerful device engineered to provide unrivaled digging power and exceptional performance. Its unique feature, the extendable clamshell arm, enables it to effortlessly reach a maximum digging radius of 4670mm and a remarkable maximum digging depth of 15200mm. The system operates smoothly and efficiently, powered by a combination of hydraulic cylinder and wire rope.
1. Stylishly Designed and Built to Last:
Finished in an attractive silver color, this Expandable Clamshell Arm not only delivers outstanding functionality but also adds a touch of elegance to your equipment. Designed to withstand rigorous use, it is constructed to be robust and durable, ensuring reliable and long-lasting performance. With a bucket weight of 520Kg, it offers optimal efficiency during operation.
2. Unmatched Versatility and Efficiency:
Equipped with a telescopic arm, operators can effortlessly expand and retract the arm, providing impressive digging power and unmatched performance. This feature enhances flexibility, enabling the device to adapt to various excavation jobs, regardless of their complexity. Whether it's a large-scale project or a smaller task, the Expandable Clamshell Arm is the ideal tool for the job.
The telescopic arm is an apparatus attached to an excavator.
It comprises of an immobile component and a mobile unit. The mobile section can be extended and then drawn back in a straightforward manner, when commanded by the telescopic cylinder.
This facilitates with a larger work area, and a more beneficial lifting height.
| Product Attributes | Details |
|---|---|
| Product Name | Clamshell Telescopic Arm |
| Max. Digging Depth | 15200mm |
| Max. Digging Depth (Reach Max. Vertical Digging Radius) | 11825mm |
| Recommended excavator capacity | ≥15ton |
| Weight of Bucket | 520Kg |
| Max. Digging Radius (Reach Max. Digging Depth) | 4670mm |
| System | Hydraulic Cylinder & Wire Rope |
| Color | Silver |
| Bucket Capacity | 0.3m³ |
| Weight | 3600kg |
| Max. Vertical Digging Radius | 6430mm |
API&E's KM150 Extendable Clamshell Arm offers a telescopic clamshell arm that is perfect for any kind of job. Made in China, this clamshell arm is available for purchase with a minimum order quantity of 1 set, priced at 31430. Packaged in wooden boxes, you can expect delivery within 20 days with a payment option of T/T. Weighing 3600kg, the clamshell arm also has a weight of bucket of 520kg. The max. vertical digging radius reaches up to 6430mm and the max. digging depth (reaching the max. vertical digging radius) is 11825mm. The clamshell arm comes in a sleek silver finish.
We provide a custom service for Clamshell Telescopic Arm. This product is branded as APIE and has a model number of KM150. The place of origin is China, and a minimum order quantity of 1 set is required. The price is 31430 and the packaging details are wooden. Delivery time is 20 days and payment terms are T/T. The recommended excavator capacity is ≥15ton, and the system is hydraulic cylinder & wire rope. The maximum vertical digging radius is 6430mm, the weight of the bucket is 520kg, and the bucket capacity is 0.3m³. If you are looking for a Telescopic Clamshell Arm or a Clamshell Telescopic Arm, please contact us for more information.
The Clamshell Telescopic Arm is packaged and shipped in a cardboard box with the following dimensions: Length: 40 cm, Width: 30 cm, Height: 20 cm.
The product itself is secured using foam padding, bubble wrap, and/or other protective materials.
The package must be handled with care, as the product is delicate and can be damaged if not handled properly.
The package should be shipped with a reliable courier service.
A1: The Brand Name of Clamshell Telescopic Arm is APIE.
A2: The Model Number of Clamshell Telescopic Arm is KM150.
A3: Clamshell Telescopic Arm is made in China.
A4: The minimum order quantity of Clamshell Telescopic Arm is 1set.
A5: The price of Clamshell Telescopic Arm is 31430. The packaging is Wooden and the delivery time is 20days. The payment terms is T/T.
