Excavator Pile Head Cutting 600mm Dia Round Concrete Cutter Machine
Excavator Pile Head Cutting
,600mm Hydraulic Pile Breaker Machine
,Hydraulic Pile Breaker Round Concrete Cutter
high quality excavator pile head cutting Round or square Concrete cutter machine for piling foundation

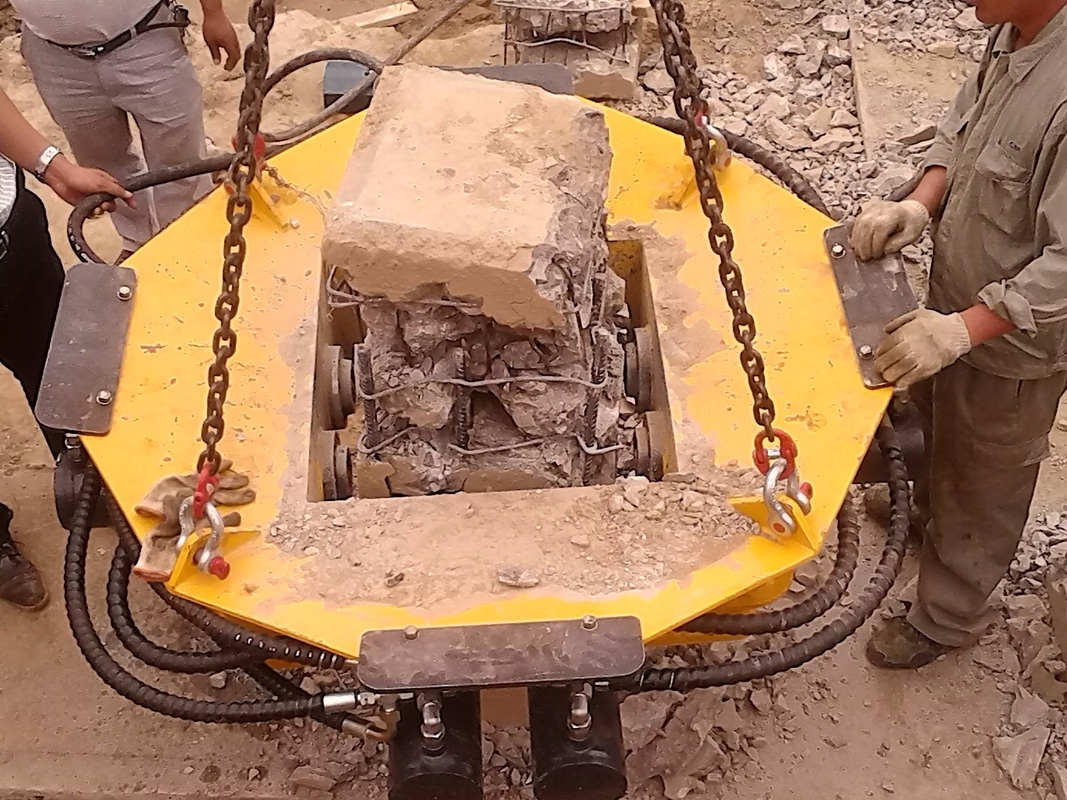

1.Square Pile Breaker
- Easy to operate. Capable of breaking up to 200 piles in a 8 hour shift;
- Little digging around pile required due to small dimensions;
- Very reliable units;
- Wear parts are very durable, and no special skills are required for maintenance;
- Low machine weight allows for easy connection to small excavator;
- Can be powered by excavator auxiliary hydraulics or by external power unit
2.Round Pile Breaker
- Highly modular systems that are easy to adjust to each pile diameter on site;
- The breaking will leave rebar reinforcement intact and guarantees no cracks below the cut off level;
- Breaking process is many times faster than conventional breaking, and is fully controllable throughout the operation;
- Handling and maintenance of the pilebreakers is very easy and doesn’t require special skills;
- To adjust the pilebreakers accurately to the pile features, “half-links” are available for both types. Because the “half-links” don’t have hydraulic cylinders, they can easily be added or removed from the pilebreaker
Technical Specification
| Technical specification |
13 modules combination KP315 |
18 modules combination KP380 |
| Pile diameter | 300~1050 mm | 600~1800 mm |
| Max. rod pressure | 280 kN | 600 kN |
| Max. cylinder stroke | 135 mm | 150 mm |
| Max. crowd pressure | 34.3 MPa | 34.3 MPa |
| Max. single cylinder flow | 20 L/min | 30 L/min |
| Quantity/8h | 60/8 h | 48/8 h |
| Max. single cutting height | ≤300 mm | ≤300 mm |
| Excavator capacity | ≥20 | ≥35 |
| Single module weight | 100 kg | 230 kg |
| Single module size | 520×444×316 mm | 696×566×350 mm |
| Operating size | Φ2098×4000 mm | Φ3316×4840 mm |
| Overall weight | 1.7 t | 4.5 t |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation
2: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
3: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
4: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
