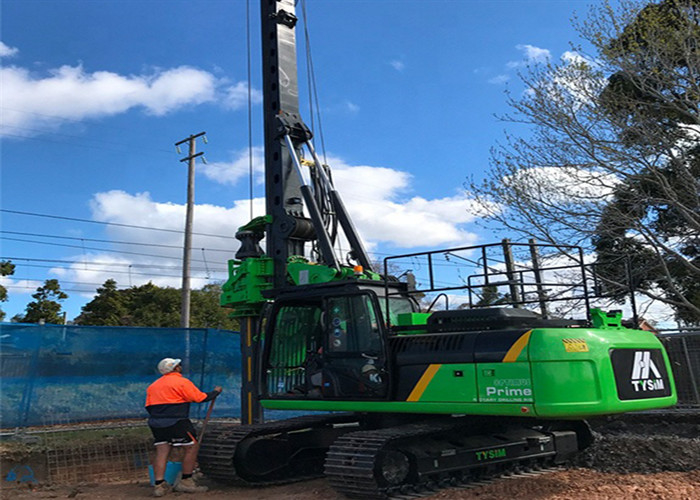

Engineering Construction Machinery CFA Multifunctional Hydraulic Crawler Excavator Drill Pile Driver
Product description
1.USA powerful Cummins engine
2.GB certification and EU EN 16228 standard certification
3.CAT chassis
4.The multi-stage vibration reduction design of the power head results in better vibration reduction
5.Strong rotary braking performance
6.New generation electronic control platform
Technical Specification
| Technical specification of KR90M rotary drilling rig(CFA &rotary drilling rig) |
| Rotary Drilling Rig Technical Parameters |
| Max Torque |
90 kN.m |
| Max Drilling dia |
1/1.2 m |
| Max Drilling Depth |
28 m |
| CFA Technical Parameters |
| Max Drilling dia |
600 mm |
| Max Drilling Depth |
12 m |
| CFA/Rotary Drilling Rig Technical Parameters |
| Mian winch line diameter |
20 mm |
| Main winch line pull |
90 kN |
| Auxiliary winch line diameter |
14 mm |
| Auxiliary winch line pull |
35 kN |
| Forward inclination |
5° |
| Lateral inclination |
±3 ° |
| Chassis type |
CAT318D |
| Engine type |
CAT C4.4 |
| Engine power rating/rotate speed |
93/200 kW/rpm |
| Max. pressure |
35 MPa |
| Max. flow |
272L/min |
| pilot pressure |
3.9 MPa |
| Track shoe width |
600 mm |
| Operating height |
16000 mm |
| Transport length |
13650 mm |
| Transport width |
2600 mm |
| Transport height |
3570 mm |
| Traction force |
156 kN |
Product details
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
