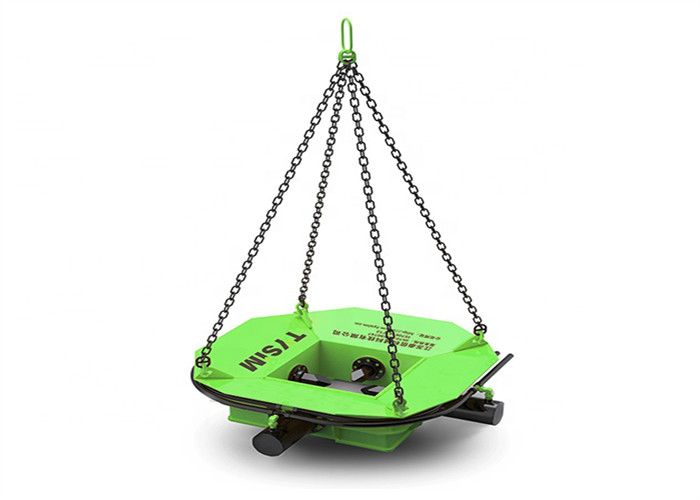

Efficient Hydraulic Pile Breaker/Cutter: Versatile and Easy to Operate
Products Description
1. Our leading hydraulic pile breaker/cutter, equipped with five patented technologies, is the most efficient equipment for crushing foundation piles and addressing the market gap.
2. Featuring an advanced modular design, it can crush piles of different diameters by adjusting the quantity and combination of modules, offering versatility and adaptability.
3. This hydraulic pile breaker/cutter can be installed on a wide range of construction machinery, providing cost-effectiveness and versatility for various project requirements.
4. With its user-friendly design, our equipment can be simply operated with minimal staff, streamlining operations and reducing labor requirements.
5. Experience efficient pile crushing as our equipment is designed to crush the piles wholly, ensuring optimal performance and results.
The use of an adjustable chain enhances the adaptability of our hydraulic pile breaker/cutter, allowing for precise and effective pile crushing.
6. Enjoy the benefits of a full hydraulic drive system, ensuring low-noise operation and minimizing disruptions in the work environment.
Our equipment is designed for quick assembly, enabling convenient transportation and enhancing overall operational efficiency.
Technical Specification
| KP400S/KP450S/KP500S Technical specification |
| Type |
KP400S |
KP450S |
KP500S |
| Pile length (mm) |
250~400 |
350~450 |
400~500 |
| Max. rod pressure (kN) |
280 |
280 |
280 |
| Max. cylinder stroke (mm) |
135 |
135 |
135 |
| Max. crowd pressure (MPa) |
34.3 |
34.3 |
34.3 |
| Max. single cylinder flow(L/min) |
20 |
20 |
20 |
| Quantity/8h |
160 |
180 |
200 |
| Max. single cutting height(mm) |
≤300 |
≤300 |
≤300 |
| Excavating capacity (t) |
≥7 |
≥8 |
≥10 |
| Operating size (mm) |
1440×1440×1500 |
1490×1490×1500 |
1588×1588×1500 |
| Overall weight (t) |
0.55 |
0.57 |
0.8 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
