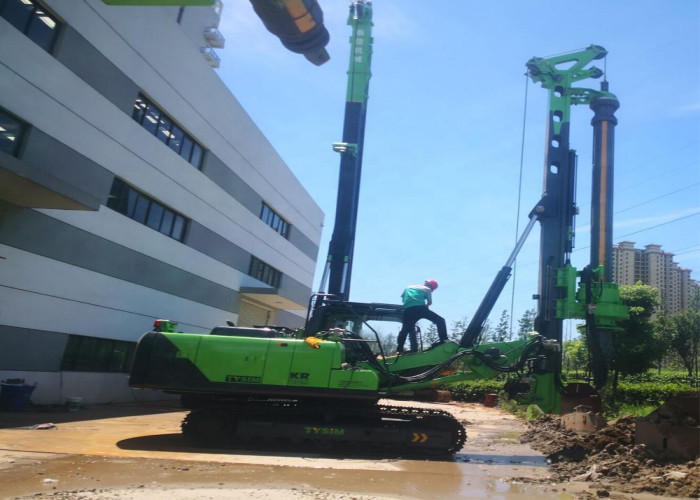

High Quality High Efficiency Machine Hydraulic Rotary Piling Rig Machine For Sale
About products
1.It adopts the dedicated hydraulic retractable crawler chassis and large diameter slewing bearing to provide extraordinary stability and transport convenience.
2.With the hydraulic pressure system adopted threshold power control and negative flow control,the system acquired high efficiency and higher energy conservation
3.GB certification and EU EN16228 standard certification.
4.Optimized structural of single-cylinder luffing mechanism.
5.Optimized designing of two-stage mast.
| Performance Parameter |
Unit |
Value |
| Max. torque |
kN.m |
60 |
| Max. drilling diameter |
mm |
1200 |
| Max. drilling depth |
m |
20 |
| Working speed |
rpm |
8~30 |
| Max. cylinder pressure |
kN |
60 |
| Max. hoist capacity |
kN |
90 |
| Main winch pull force |
kN |
65 |
| Main winch speed |
m/min |
48 |
| Auxiliary winch pull force |
kN |
20 |
| Auxiliary winch speed |
m/min |
48 |
| Max. cylinder stroke |
mm |
2000 |
| Mast side raking |
° |
±3 |
| Mast raking forward |
° |
4 |
| System pressure |
mpa |
34.3 |
| Pilot pressure |
mpa |
3.9 |
| Max. walking speed |
km/h |
2.8 |
| Max. pull force |
kN |
98 |
| Operating height |
mm |
10600 |
| Operating width |
mm |
2690 |
| Transport height |
mm |
3250 |
| Transport width |
mm |
2690 |
| Transport length |
mm |
9500 |
| Total weight |
t |
20 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. TYSIM core team is instituted by the senior researchers.
