APIE KP315: Professional Manufacturer of Hydraulic Round Pile Breaker for Construction Works
Products Description
1. Leading Hydraulic Pile Breaker/Cutter with Five Patented Technologies:

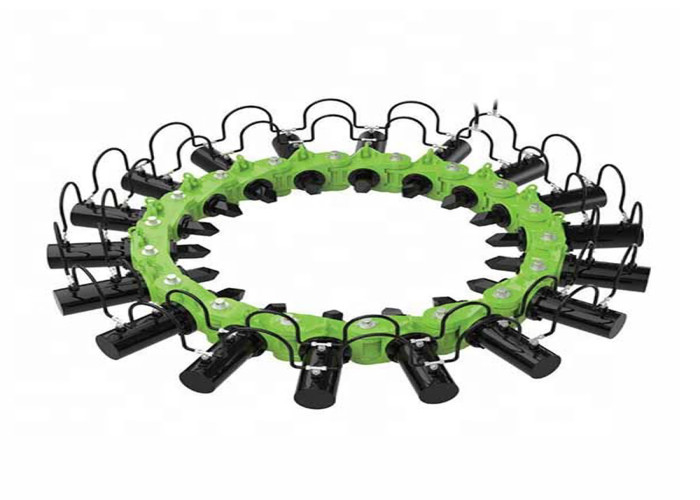

The APIE KP315 hydraulic pile breaker/cutter is a cutting-edge equipment that incorporates five patented technologies. It stands out as the most efficient solution for crushing foundation piles, filling the domestic gap in pile-breaking technology. Its advanced features ensure superior performance and exceptional efficiency.
2. Advanced Modular Design for Crushing Piles of Different Diameters:
Utilizing an advanced modular design, the KP315 pile breaker/cutter can accommodate piles of different diameters by adjusting the module combination quantity. This design flexibility allows for efficient and precise pile-breaking operations, adapting to the specific requirements of various construction projects.
3. Versatile Installation on a Variety of Construction Machinery:
The KP315 pile breaker/cutter is designed for compatibility with a wide range of construction machinery. This versatility enables seamless integration with different types of equipment, enhancing its utility and cost-effectiveness. It can be easily installed and optimized for use with various machines, ensuring efficient operation on construction sites.
Technical Specification
| Technical specification |
13 modules combination
KP315
|
18 modules combination
KP380
|
| Pile diameter |
300~1050 mm |
600~1800 mm |
| Max. rod pressure |
280 kN |
600 kN |
| Max. cylinder stroke |
135 mm |
150 mm |
| Max. crowd pressure |
34.3 MPa |
34.3 MPa |
| Max. single cylinder flow |
20 L/min |
30 L/min |
| Quantity/8h |
60/8 h |
48/8 h |
| Max. single cutting height |
≤300 mm |
≤300 mm |
| Excavator capacity |
≥20 |
≥35 |
| Single module weight |
100 kg |
230 kg |
| Single module size |
520×444×316 mm |
696×566×350 mm |
| Operating size |
Φ2098×4000 mm |
Φ3316×4840 mm |
| Overall weight |
1.7 t |
4.5 t |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation
2: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
3: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
4: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
