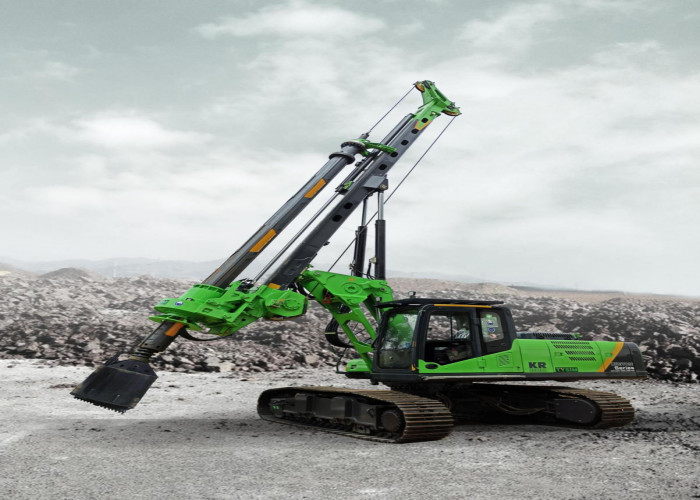

China Manufacturer Electric Power Construction Bored Pile Hydraulic Drilling Rig: High Stability and Customization
Product Description:
1. The hydraulic drilling rig features an expansion chassis with a double-width design. It has an operating width of 3600mm and a transport width of 2600mm. This design ensures excellent passability and high construction stability.
2. With high traction capabilities, the entire machine is flexible and can handle normal driving on 20° ramps, meeting various terrain requirements.
3. The rig is designed in accordance with EU standards, guaranteeing high construction stability and adherence to quality and safety regulations.
4. It is equipped with a customized high-power engine, dual drive power head, and large output torque. These features enable efficient construction in complex formations while maintaining high construction efficiency.
5. The drilling rig supports large drilling diameters through the use of different drilling tools and construction methods, offering versatility for various project requirements.
6. A customized low mast design is implemented to lower the center of gravity, significantly improving construction stability and overall performance.
Choose the China Manufacturer Electric Power Construction Bored Pile Hydraulic Drilling Rig for reliable and customized solutions. With its wide operating width, high traction capabilities, and adherence to EU standards, this drilling rig ensures stability and efficiency in construction projects. Its customization options, including the high-power engine and low mast design, further enhance its performance. Experience the power and reliability of this hydraulic drilling rig for your construction needs.
Technical Specification
| Technical Specification |
Unit |
Numerical value |
| Max Torque |
kN.m |
110 |
| Max. diameter |
mm |
1200 |
| Max. drilling depth |
m |
20 |
| Speed of rotation |
rpm |
6~26 |
| Max. crowd pressure |
kN |
90 |
| Max. crowd pull |
kN |
120 |
| Main winch line pull |
kN |
90 |
| Main winch line speed |
m/min |
75 |
| Auxiliary winch line pull |
kN |
35 |
| Auxiliary winch line speed |
m/min |
40 |
| Stroke(crowd system) |
mm |
3500 |
| Mast inclination(lateral) |
° |
±3 |
| Mast inclination |
° |
5 |
| Mast inclination(backward) |
° |
87 |
| Max. operating pressure |
mpa |
35 |
| Pilot pressure |
mpa |
3.9 |
| Travel speed |
km/h |
1.5 |
| Traction force |
kN |
230 |
| Operating height |
mm |
12367 |
| Operating width |
mm |
3600/3000 |
| Transport height |
mm |
3507 |
| Transport width |
mm |
2600/3000 |
| Transport length |
mm |
10510 |
| Overall weight |
t |
33 |
Product details
FAQ
1: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
2: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation
3: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
4: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
