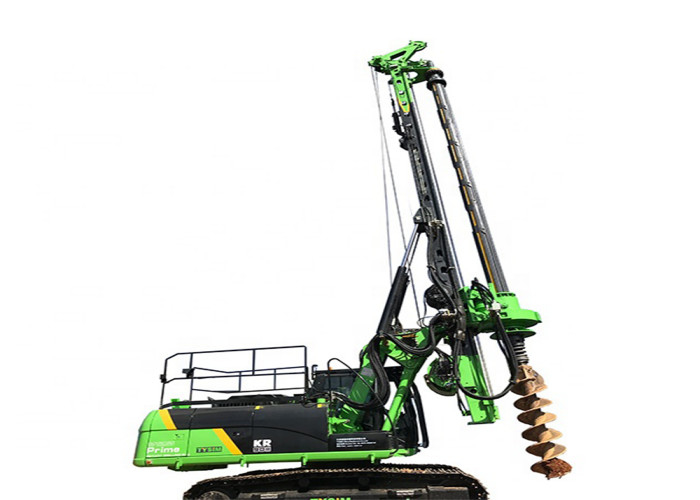

2000mm 2500mm Borehole Hydraulic Pile Breaking Machine Rotary Piling Rig
  • 2000mm 2500mm Borehole Hydraulic Pile Breaking Machine Rotary Piling Rig
  • 2000mm 2500mm Borehole Hydraulic Pile Breaking Machine Rotary Piling Rig
  • 2000mm 2500mm Borehole Hydraulic Pile Breaking Machine Rotary Piling Rig
  • 2000mm 2500mm Borehole Hydraulic Pile Breaking Machine Rotary Piling Rig
2000mm 2500mm Borehole Hydraulic Pile Breaking Machine Rotary Piling Rig

2000mm 2500mm Borehole Hydraulic Pile Breaking Machine Rotary Piling Rig

Place of Origin Jiangsu, China
Brand Name APIE
Certification CE and ISO9001
Model Number KR360C
Product Details
Product Name:
Drilling Equipment
Max Torque:
360kN.m
Condition:
New
Max. Drilling Depth:
83/54m
Main Winch Speed:
60m/min
Operating Height:
22605mm
Max Drilling Diameter:
2000/2500mm
Working Speed:
5-26rmp
Max. Cylinder Stroke:
6000mm
Mast Raking Backward:
90°
Mast Side Raking:
±5°
Total Weight:
89t
Highlight:

2000mm hydraulic pile breaking machine

,

2500mm hydraulic pile breaking machine

,

hydraulic rotary piling rig 60m/min

Payment & Shipping Terms
Minimum Order Quantity
1 sets
Price
$900000+
Packaging Details
One is nude packing and overall transport by sea with roll-on -roll ship.( L*W*H=9150*2600*3250mm); The other is host in the flat rack; kelly bar and bucket is also nude, meanwhile four wooden case which is put with mast, power head, follow-up frame and ma
Delivery Time
30-35 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2 sets/month
Product Description

Construction Works High Efficiency Hydraulic Piling Augers Borehole Rig Drilling Machine



Product Advantages



1. We are the leading manufacturer in China, offering the most comprehensive series of small rotary drilling rigs.

2. Our company holds the largest export volume of small rotary drilling rigs in China.

3. We have the highest number of rotary drilling rigs in the Australian market.

4. Our brand is recognized as the first choice for small rotary drilling rigs in the Thai market.



Performance Parameter Unit Value
Max. torque kN.m 360
Max. drilling diameter mm 2000/2500
Max. drilling depth m 83/54
Working speed rpm 5~26
Max. cylinder pressure kN 220
Max. hoist capacity kN 220
Main winch pull force kN 320
Main winch speed m/min 60
Auxiliary winch pull force kN 110
Auxiliary winch speed m/min 70
Max. cylinder stroke mm 6000
Mast side raking ° ±5
Mast raking forward ° 5
Mast raking backward ° 90
System pressure mpa 35
Pilot pressure mpa 4
Max. walking speed km/h 1.4
Max. pull force kN 585
Operating height mm 22605
Operating width mm 4300
Transport height mm 3646
Transport width mm 3000
Transport length mm 16505
Total weight t 89

2000mm 2500mm Borehole Hydraulic Pile Breaking Machine Rotary Piling Rig 02000mm 2500mm Borehole Hydraulic Pile Breaking Machine Rotary Piling Rig 1



FAQ

1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.



2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm



3: Why should you buy from us not from other suppliers?
TYSIM is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. TYSIM core team is instituted by the senior researchers.
