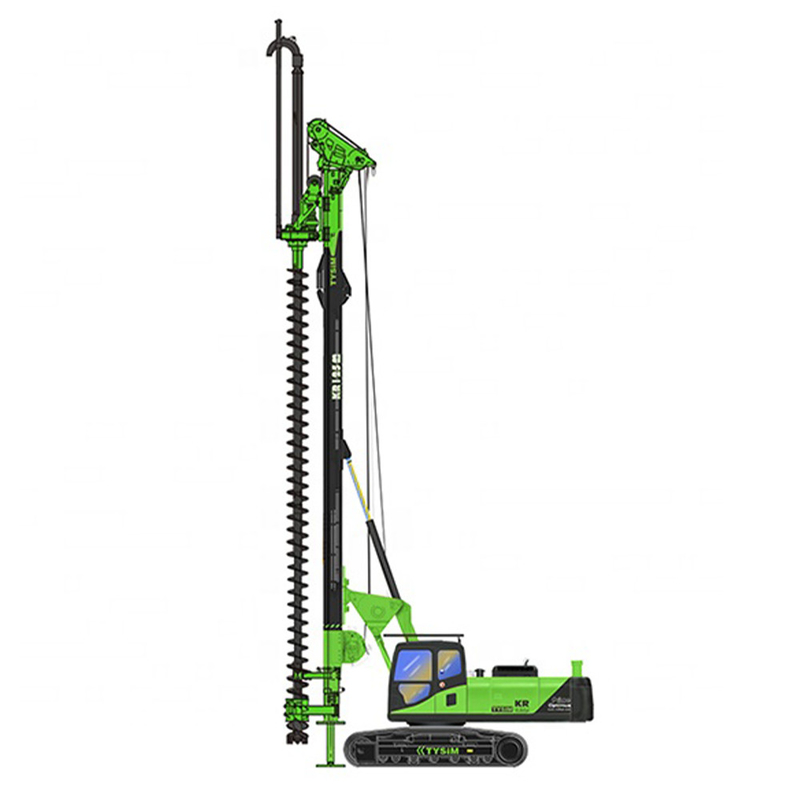

Hydraulic Multifunctional CFA Pile Drilling Rig Machine High Efficiency Depth 16 M
Hydraulic Multifunctional pile drilling machine
,CFA Pile Drilling Rig Machine
,depth 16m pile drilling machine
Product Description:
The expansion chassis is designed to have optimal dimensions for Google indexing, with a double width measuring 3600mm during operation and 2600mm during transport. Its exceptional maneuverability ensures effortless movement, while boasting a remarkable level of stability.
This machine excels in traction capacity during traversal, easily meeting the standard requirement of a 20° incline for regular driving.
Adhering to European Union standards, this equipment guarantees the utmost stability by design.
Equipped with customizable high-power engines featuring dual drive power heads and delivering substantial output torque, it effortlessly handles intricate formation constructions, significantly enhancing construction efficiency.
With a diverse range of drilling tools and construction methods, it effortlessly achieves construction objectives involving large drill diameters.
Moreover, it incorporates a tailor-made low mast with a lowered center of gravity, thus enhancing construction stability and safety.
Features:
| KR150M-CAT | KR150M--Cummins | KR240M-CAT | KR240M-Cummins | ||
| Technical Parameters | Unit | Value | Value | Value | Value |
| Max. drilling depth | m | 16 | 16 | 20 | 20 |
| Max. drilling diameter | mm | 700 | 700 | 800 | 800 |
| Max. torque | kN.m | 150 | 150 | 240 | 240 |
| Crowd winch Max. pull force | kN | 120 | 120 | 200 | 200 |
| Main winch pull force | kN | 110 | 110 | 230 | 230 |
| Main winch pull speed | m/min | 78 | 78 | 60 | 60 |
| Auxiliary winch pull force | kN | 60 | 60 | 110 | 90 |
| Auxiliary winch pull speed | m/min | 79 | 60 | 60 | S |
| Max. stroke of crowd winch | mm | 10000 | 10000 | 16000 | 16000 |
| Lateral inclination | ° | ±3 | ±3 | ±3 | ±5 |
| Forward inclination | ° | 5 | 5 | 5 | 5 |
| Max. pressure | mpa | 35 | 34.3 | 35 | 34.3 |
| Pilot pressure | mpa | 3.9 | 3.9 | 3.9 | 4 |
| Max. moving speed | km/h | 3.2 | 3.2 | 2.8 | 2.8 |
| Max. tractive force | kN | 205 | 220 | 420 | 420 |
| Opertating height | mm | 18850 | 18850 | 25955 | 25955 |
| Opertating width | mm | 3700 | 3700 | 4300 | 4300 |
| Transport height | mm | 3635 | 3645 | 3256 | 3256 |
| Transport width | mm | 2700 | 2700 | 3000 | 3000 |
| Transport length | mm | 15480 | 15480 | 15685 | 15260 |
| Total weight | t | 38 | 38 | 60 | 65 |
| Engine Performance | |||||
| Engine Model | CAT-7.1 | QSB7 | CAT-7.1 | QSL9 | |
| Engine Form | Water cooling,6 Cylinders in-Line,Turbocharger | 6 cylinder in-line, turbocharged, air to air intercooling, high pressure common rail | Water cooling,6 Cylinders in-Line,Turbocharger | 6 cylinder in-line, turbocharged, air to air intercooling, high pressure common rail | |
| Cylinder No.*Cylinder Dia.* Stroke | mm | 6×105×135 | 6×107×124 | 6×115×140 | 6×114×145 |
| Displacement | L | 7.01 | 6.7 | 7.2 | 8.9 |
| Rated power | kw/rpm | 117/1800 | 140/2050 | 186/1800 | 232/1900 |
| Emission standard | EUⅢ | EUⅢ | EUⅢ | TIER 3 |
Applications:
APIE KR125M-CAT Multi-Purpose Drilling Machine is the perfect choice for drilling operations that require a versatile and reliable drilling rig. It is ideal for a wide range of applications such as water well drilling, geothermal drilling, directional drilling, and mineral exploration. It is equipped with a CAT-7.1 engine and can generate a maximum tractive force of 205 KN and a maximum pull force of 120 KN from its crowd winch. It also offers a maximum pressure of 35 Mpa and a pilot pressure of 3.9 Mpa.
APIE KR125M-CAT Multi-Purpose Drilling Machine is made of durable materials and its efficient design ensures a long service life. It is easy to install and maintain and is available at an affordable price. Minimum order quantity is 1 set and the price starts from $250000+. It is well packed in wooden crates for safe and secure transportation.
If you are looking for a multi-application drilling rig that offers superior performance and reliability, then the APIE KR125M-CAT Multi-Purpose Drilling Machine is the perfect choice for you. It will be delivered within 20 days after placing the order and payment can be made via T/T.
Customization:
At APIE, we provide customized services for our Multi-Task Drilling Rig, Multi-Capable Drilling Rig, and Multi-Application Drilling Rig. Our Model Number KR125M-CAT offers a variety of features, including:
- Brand Name: APIE
- Model Number: KR125M-CAT
- Place of Origin: China
- Minimum Order Quantity: 1 set
- Price: $250000+
- Packaging Details: Wooden
- Delivery Time: 20 days
- Payment Terms: T/T
- Transport length: 14585 Mm
- Auxiliary winch pull speed: 60 M/min
- Opertating width: 3700 Mm
- Main winch pull force: 110 KN
- Max. drilling diameter: 700 Mm
Our Multifunctional Drilling Rig is designed for high-performance, cost-effective operations. With its multiple applications, it is suitable for a wide range of drilling projects. We offer a comprehensive range of services to ensure that you get the most out of your investment. Contact us today to learn more about our custom services.
Support and Services:
We provide professional technical support and service for our customers using the multifunctional drilling rig, ensuring that the equipment is functioning properly and efficiently.
We provide a wide range of technical support services for our customers, including:
- Troubleshooting and resolving technical issues
- Upgrading and updating software and hardware
- Providing maintenance and repair services
- Providing technical advice and support
- Providing training for operators
- Providing online support through our website
We provide comprehensive service for our customers, including:
- Providing spare parts and materials
- Providing installation and commissioning services
- 24/7 technical support
- Regular maintenance and inspection services
- On-site repair and replacement services
- Guarantee and warranty services
We are committed to providing our customers with the highest quality technical support and service for the multifunctional drilling rig.
Packing and Shipping:
The Multifunctional Drilling Rig will be packaged in the following manner:
- The entire unit will be securely wrapped in a heavy-duty plastic film to prevent scratches or other damage.
- The unit will be placed in a strong, durable cardboard box with adequate cushioning material to protect it during transit.
- The box will be sealed with heavy-duty tape.
- The box will be labeled with the product name and shipment address.
The Multifunctional Drilling Rig will be shipped via a major freight carrier and will require a signature upon delivery.
FAQ:
Q1: What is the brand name of the Multifunctional Drilling Rig?
A1: The brand name of the Multifunctional Drilling Rig is APIE.
Q2: What is the model number of the Multifunctional Drilling Rig?
A2: The model number of the Multifunctional Drilling Rig is KR125M-CAT.
Q3: Where is the Multifunctional Drilling Rig made?
A3: The Multifunctional Drilling Rig is made in China.
Q4: What is the minimum order quantity for the Multifunctional Drilling Rig?
A4: The minimum order quantity for the Multifunctional Drilling Rig is 1 set.
Q5: What is the price for the Multifunctional Drilling Rig?
A5: The price for the Multifunctional Drilling Rig is $250000+.
