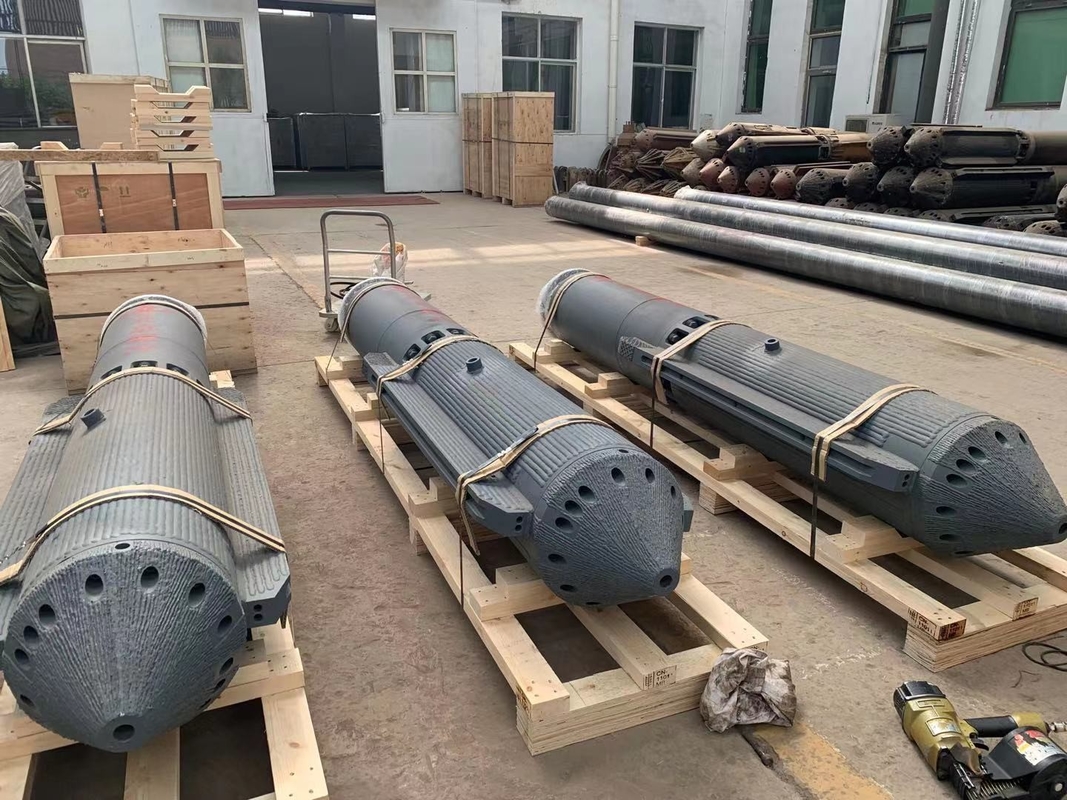

APV130E-426 Top Feed Electrical Vibroflot For Vibrating Flotation Equipment
APV130E-426 Top Feed Electrical Vibroflot For Vibrating Flotation Equipment
Basic Properties
Place of Origin:
China
Brand Name:
APIE
Model Number:
APV130E-426
Trading Properties
Minimum Order Quantity:
1 set
Supply Ability:
10 Set/Sets per Month
Product Summary
Product Description: 1.Vibration tube and motor shell are made of high strength forged steel. 2.The motor coil is sealed with high temperature aging film, which has long service life and good insulation effect. 3.Unique circulating water cooling motor structure, good heat dissipation performance, ...
Product Custom Attributes
Highlight
Top Feed Electrical Vibroflot
,Vibrating Flotation Equipment Vibroflot
,Electrical 1200 mm Vibroflot
Product Description
Detailed Specifications & Features
Product Description:
1.Vibration tube and motor shell are made of high strength forged steel.
2.The motor coil is sealed with high temperature aging film, which has long service life and good insulation effect.
3.Unique circulating water cooling motor structure, good heat dissipation performance, high efficienc.
4.It is suitable for silt soil with undrained shear strength less than 20kpa
5.Suitable for underwater vibroflotation engineering
| Max rotation speed | 1200-1800rpm |
| Working pile diameter | 900-1200mm |
| Frequency | 40-60Hz |
| System air pressure | 6 bar |
| Centrifulgal force | 200-300kN |
| Hopper capacity | 1.2m3 |
| Feeding pipe inner dia | DN25 mm |
| Electrical control mode | Inverter drive |
| Cooling mode | Circulating water cooling |
| Air flow rate | 10m3/min |
