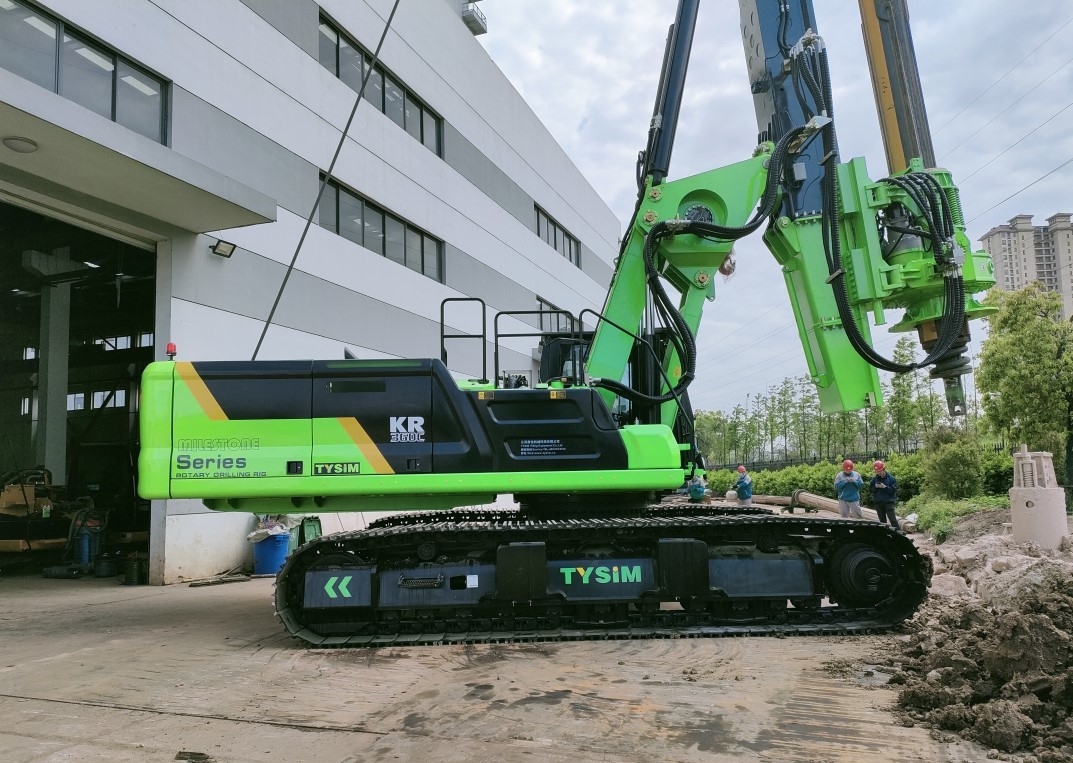

KR360C Hydraulic Earth Piling Rig Heavy Construction Machine Bored Equipment
  • KR360C Hydraulic Earth Piling Rig Heavy Construction Machine Bored Equipment
  • KR360C Hydraulic Earth Piling Rig Heavy Construction Machine Bored Equipment
  • KR360C Hydraulic Earth Piling Rig Heavy Construction Machine Bored Equipment
  • KR360C Hydraulic Earth Piling Rig Heavy Construction Machine Bored Equipment
  • KR360C Hydraulic Earth Piling Rig Heavy Construction Machine Bored Equipment

KR360C Hydraulic Earth Piling Rig Heavy Construction Machine Bored Equipment

Place of Origin Jiangsu, China
Brand Name TYSIM
Certification CE and ISO9001
Model Number KR360C
Product Details
Product Name:
KR360C Drilling Rig
Max Torque:
360 KN.m
Max. Drilling Depth:
83/62/54m
System Pressure:
35mpa
Max Drilling Diameter:
2000/2500mm
Transport Height:
3646mm
Main Winch Speed:
70m/min
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Warranty:
1year
Max. Walking Speed:
1.4km/h
Total Weight:
89t
Highlight:

KR360C Hydraulic Earth Piling Rig

,

Bored Hydraulic Earth Piling Rig

,

35mpa Hydraulic Earth Piling Rig

Payment & Shipping Terms
Minimum Order Quantity
1 sets
Price
$450000+
Packaging Details
One is nude packing and overall transport by sea with roll-on -roll ship.( L*W*H=9150*2600*3250mm); The other is host in the flat rack; kelly bar and bucket is also nude, meanwhile four wooden case which is put with mast, power head, follow-up frame and ma
Delivery Time
30-35 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
2 sets/month
Product Description

KR360C Heavy Construction Machine Bored Piling Equipment Hydraulic Earth Piling Rig


Our Advantages
Obtained more than 40 patents and exported to more than 40 countries.
A professional R&D team with 10 years of industry experience.
Passed ISO9001 quality management system certification, obtained CE certification.
Engineer overseas service. Ensure the quality of the machine and good after - sales service.
Manufacturer of the most complete series of small rotary drilling rig in China.
The largest export volume of small rotary drilling rig in China.
The most rotary drilling rigs in Australian market.
First brand of small rotary drilling rig in Thailand market.




Performance Parameter Unit Value
Max. torque kN.m 360
Max. drilling diameter mm 2000/2500
Max. drilling depth m 83/54
Working speed rpm 5~26
Max. cylinder pressure kN 220
Max. hoist capacity kN 220
Main winch pull force kN 320
Main winch speed m/min 60
Auxiliary winch pull force kN 110
Auxiliary winch speed m/min 70
Max. cylinder stroke mm 6000
Mast side raking ° ±5
Mast raking forward ° 5
System pressure mpa 35
Pilot pressure mpa 4
Max. walking speed km/h 1.4
Max. pull force kN 585
Operating height mm 22605
Operating width mm 4300
Transport height mm 3646
Transport width mm 3000
Transport length mm 16505
Total weight t 89

KR360C Hydraulic Earth Piling Rig Heavy Construction Machine Bored Equipment 0
KR360C Hydraulic Earth Piling Rig Heavy Construction Machine Bored Equipment 1KR360C Hydraulic Earth Piling Rig Heavy Construction Machine Bored Equipment 2

FAQ
Q1: Are you a trading company or a manufacturer?
A1: We are a professional manufacturer, and our factory mainly produces hydraulic pilling rig, hydraulic pile breaker, telescopic arm and related piling equipment etc. Our products have been exported to more than 50 countries of Asia, South America, Africa,and have developed a good world wide reputation.
Q2:What kind of product certification do you have?
A2: All our products have passed ISO9001 and CE certifications and also passed the inspection by the Chinese National Construction Machinery Quality Inspection Center. We have strict quality inspection process including a load test for every machine before leaving our factory in order to offer the best quality machines to our customers
Q3: Do you have after sales service?
A3:Yes, we have special service team which will offer you professional guidance. If need be, we can dispatch our engineer to your worksite to provide training for your staff. For the chassis, e.g CAT chassis, we take advantage of their global presence to ensure prompt after service support. During the epidemic, we provided video for machine installation and operations.
Q4:How about the warranty policy ?
A4:We offer one-year warranty or 2000 hours of operations, whichever comes first, for our products.
Q5:Do you test all your goods before delivery?
A5 :Yes, we have strict quality inspection process including a load test for every machine before leaving our factory.
