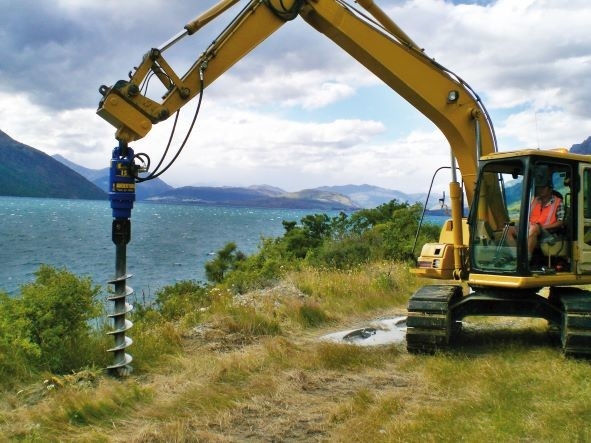

mini excavator attachment auger drilling machine KA4500 hydraulic earth augers post hole digger
Feature
1.Try to turn your excavators into multipurpose high return tool carriers? APIE supplies a package of total solutions.
2.Our auger drive can be mounted to excavator, skid steer loader, backhoe loader, crane, telescopic handler, wheel loader and so on.
3.Fast quick attach from your bucket or breaker to a drilling machine. Drill large diameter holes in most ground conditions including frozen ground and rock. Maximum performance with minimal wear and tear. It’s a high-performance attachment with a great return on investment.
4.We offer a complete set for mini and heavy duty excavator, no other accessories required. Also, this earth auger unit can be easily mounted to your excavator.
5.APIE provides a full suite of affordable options for your machine. We listed the most popular excavator models in the chart below. For more details about the mounts, augers, adapter, extension, bits and accessories, please contact us directly to get more information.
| Technical Specification of Auger Drill |
| Type | Unit | KA2500 | KA3000 | KA3500 | KA4000 | KA6000 | KA8000 |
| Suitable Excavator | T | 1.5-3T | 2-4T | 2.5-4.5T | 3-5T | 4.5-6T | 5-7T |
| Torque | Nm | 790-2593 | 1094-3195 | 1374-3578 | 1710-4117 | 2570-6917 | 3163-8786 |
| Pressure | Bar | 70-240 | 80-240 | 80-240 | 80-240 | 80-240 | 80-240 |
| Flow | Lpm | 25-65 | 25-70 | 40-80 | 50-92 | 40-89 | 48-110 |
| Rotate Speed | Rpm | 36-88 | 30-82 | 35-75 | 35-68 | 20-46 | 20-45 |
| Output Shaft | mm | 65Rnd | 65Rnd | 65Rnd | 65Rnd | 75Sq | 75Sq |
| Weight | Kg | 95 | 100 | 105 | 110 | 105 | 110 |
| Max Auger Diameter Clay/Shale | mm | 300 | 300 | 350 | 350 | 500 | 600 |
| Max Auger Diameter Earth | mm | 350 | 400 | 450 | 500 | 600 | 800 |
| Technical Specification of Auger Drill |
Type | Unit | KA9000 | KA15000 | KA20000 | KA25000 | KA30000 | KA59000 |
| Suitable Excavator | T | 6-8T | 10-15T | 12-17T | 15-22T | 17-25T | 20-35T |
| Torque | Nm | 3854-9961 | 5307-15967 | 6715-20998 | 8314-25768 | 15669-30393 | 27198-59403 |
| Pressure | Bar | 80-240 | 80-260 | 80-260 | 80-260 | 80-260 | 160-350 |
| Flow | Lpm | 70-150 | 80-170 | 80-170 | 80-170 | 80-170 | 100-250 |
| Rotate Speed | Rpm | 23-48 | 23-48 | 15-32 | 12-26 | 12-21 | 10-22 |
| Output Shaft | mm | 75Sq | 75Sq | 75Sq | 75Sq | 75Sq | 110Sq |
| Weight | Kg | 115 | 192 | 200 | 288 | 298 | 721 |
| Max Auger Diameter Clay/Shale | mm | 800 | 900 | 1000 | 1100 | 1200 | 1500 |
| Max Auger Diameter Earth | mm | 1000 | 1200 | 1400 | 1500 | 1600 | 2000 |
Product details
FAQ
Q1: How to choose a suitable model?
Pls kindly let us know your following information, and then we recommend right model for you.
1 Brand and model of Excavator/Backhoe/Skid Steer loader 2.Hole diameter 3.Hole depth 4.Soil condition
Q2: Can earth drill fit a variety of machines?
Yes.as long as the carrier's specifications agree with the parameters of the Earth Drill as outlined in our catalogue
Q3: Do I need to purchase spare parts when ordering an earth drill?
It is not necessary to purchase spare parts for the Planetary Drive as this is a sealed unit, however it is important to follow the service schedule as outlined in the operator manual. It is advisable to purchase spare wearing parts (teeth and Pilots).
Q4: How about the delivery time?
Within 5-10 working days after receiving T/T payment.
