Dipper Clamshell Bucket Telescopic Arm Excavator Attachment Hydraulic Tysim Long Reach

Place of Origin Jiangsu, China
Brand Name APIE
Certification CE and ISO9001
Model Number KM150,KM220,KM260
Product Details
Product Name:
Excavator Attachment Clamshell Telescopic Arm
Max. Digging Depth:
22490mm
Max. Digging Radius:
5845mm
Max. Operating Radiusoke:
9835mm
Recommended Excavator Capacity:
≥36ton
Weight Of Bucket:
1600kg
Weight:
5.6t
Showroom Location:
Italy, Peru, Indonesia, Russia, Thailand, Kenya, Australia
Model:
KM150,KM220,KM260
Application Area:
Small Space Construction
Shell Bucket Size:
Custome
KMF Line:
Low Headroom Telescopic Boom
Highlight:

Dipper Clamshell Bucket Telescopic Arm

,

Excavator Attachment Clamshell Telescopic Arm

,

Hydraulic Tysim Clamshell Telescopic Arm

Payment & Shipping Terms
Minimum Order Quantity
1 sets
Price
$48000+
Packaging Details
nude packing
Delivery Time
5-7 days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10 sets/month
Product Description

Excavator Attachment Hydraulic: APIE Long Reach Dipper Clamshell Bucket Telescopic Arm



Product Feature

1. Efficient and Safe Underground Construction:
Our hydraulic excavator attachments are specifically designed to ensure the safe and timely completion of underground construction projects. With the ability to excavate soil from depths of up to 27m below ground level, these models are equipped with sliding cabs that provide enhanced visibility. The high-speed extension and retraction of the telescopic arm, coupled with a powerful pull-up force, enable quick and efficient loading of trucks.



2. Perfect for Narrow Urban Job Sites:
Featuring speedy performance, excellent stability, and a compact size, our excavator attachment is an ideal choice for belowground excavation in narrow job sites within urban environments. It offers maneuverability and versatility, allowing for precise operation even in limited spaces.



3. User-Friendly Design with Enhanced Safety and Productivity:
Manufactured to meet the demands of our customers, the KM150, KM220, and KM260 models are user-friendly, easy to transport, and simple to maintain. They come equipped with a range of features and options that enhance safety and productivity, ensuring a smooth and efficient operation.



Technical Specification

Technical Specification of KM Telescopic Excavator Boom
Type KM150 KM220 KM260
System Hydraulic cylinder&Wire rope Hydraulic cylinder &Wire rope Hydraulic cylinder&Wire rope
Weight 3.6t 4.6t 5.6t
Bucket Capacity 0.3m³ 0.6m³ 1.2m³
Max. Digging Depth 15200mm 22490mm 27180mm
Max. Digging Radius(Reach Max. Digging Depth) 4670mm 5845mm 6400mm
Max.Vertical Digging Radius 6430mm 7445mm 8530mm
Max. Digging Depth(Reach Max. Vertical Digging Radius) 11825mm 19920mm 22370mm
Max. Operating radius 7950mm 9835mm 11250mm
Max. Hoisting Height 2870mm 4465mm 5770mm
Min. Operating Radius 3980mm 4485mm 5460mm
Max. Operating Height 9475mm 13580mm 16675mm
Overall Transport Length 6908mm 10685mm 12390mm
Weight of Bucket 520Kg 990Kg 1600Kg
Recommended excavator capacity ≥15ton ≥23ton ≥36ton

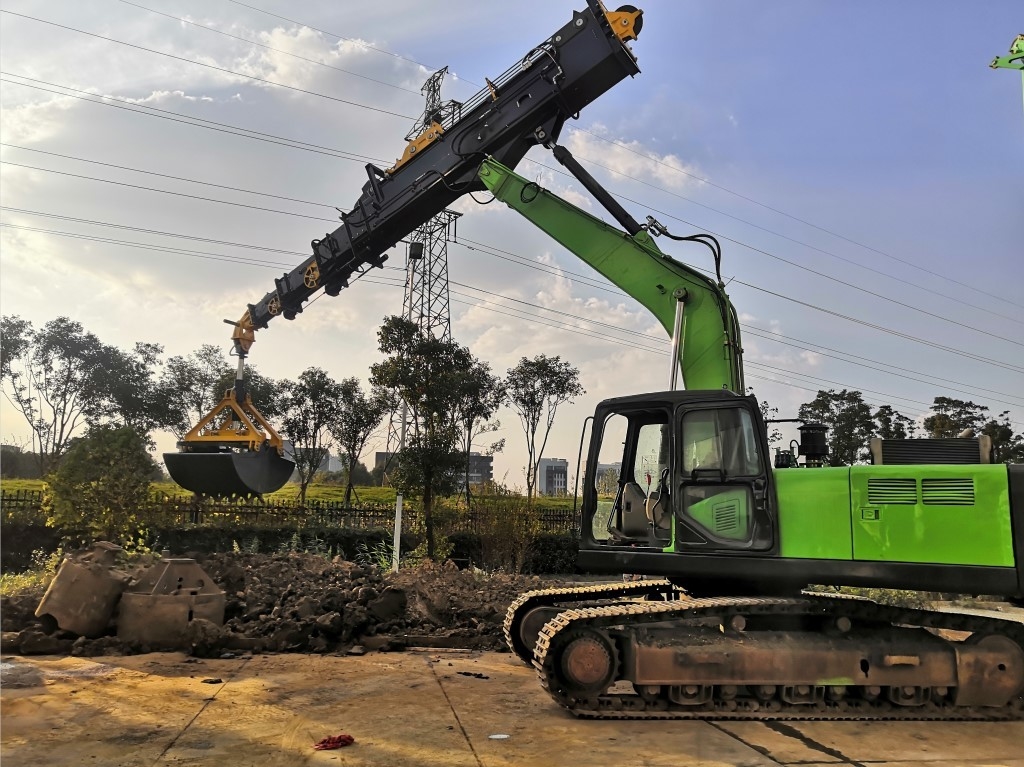

Dipper Clamshell Bucket Telescopic Arm Excavator Attachment Hydraulic Tysim Long Reach 0

Dipper Clamshell Bucket Telescopic Arm Excavator Attachment Hydraulic Tysim Long Reach 1

Dipper Clamshell Bucket Telescopic Arm Excavator Attachment Hydraulic Tysim Long Reach 2

Dipper Clamshell Bucket Telescopic Arm Excavator Attachment Hydraulic Tysim Long Reach 3



FAQ

1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.



2: What's your service ?

We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.



3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm



4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
