Pile Cutting Hydraulic Concrete Pile Breaker Machine Cylinder Square Excavator KP400S KP450S
Pile Cutting Hydraulic Concrete Breaker
,Cylinder Square Hydraulic Pile Breaker
,KP450S Hydraulic Pile Breaker
pile cutting machine cylinder square excavator accessoriesKP400S/KP450S/KP500S hydraulic concrete pile breaker

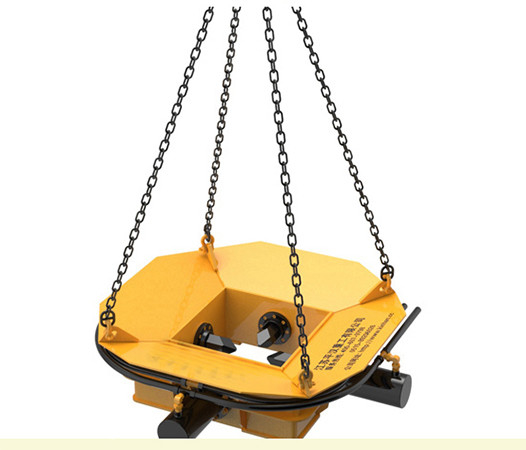

1.A pile breaker is a construction tool used to cut foundation piles. The advantage of pile breakers is that they create a perfectly horizontal pile cutting finish without damaging the reinforcement or leaving cracks below the cutoff level. Pile breakers have a modular design and are highly customizable, meaning it’s easy to adapt the tool to the specific size and shape of each of the concrete piles on site.
2.A pile breaker is composed of cylinder modules or square modules and links, which can be adjusted and allows the pile breaker to fit around piles of varying shapes and sizes. Pile breakers come with different tip kits and tip lengths, which allows for easy maintenance and versatility. A pile breaker’s lifting kit enables the pile breaker to be used with cranes, excavators and other construction machines. Pile breakers are available in both light and heavy models, which are suited for different pile dimensions.
Technical Specification
| KP400S/KP450S/KP500S Technical specification | |||
| Type | KP400S | KP450S | KP500S |
| Pile length (mm) | 250~400 | 350~450 | 400~500 |
| Max. rod pressure (kN) | 280 | 280 | 280 |
| Max. cylinder stroke (mm) | 135 | 135 | 135 |
| Max. crowd pressure (MPa) | 34.3 | 34.3 | 34.3 |
| Max. single cylinder flow(L/min) | 20 | 20 | 20 |
| Quantity/8h | 160 | 180 | 200 |
| Max. single cutting height(mm) | ≤300 | ≤300 | ≤300 |
| Excavating capacity (t) | ≥7 | ≥8 | ≥10 |
| Operating size (mm) | 1440×1440×1500 | 1490×1490×1500 | 1588×1588×1500 |
| Overall weight (t) | 0.6 | 0.65 | 0.92 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
