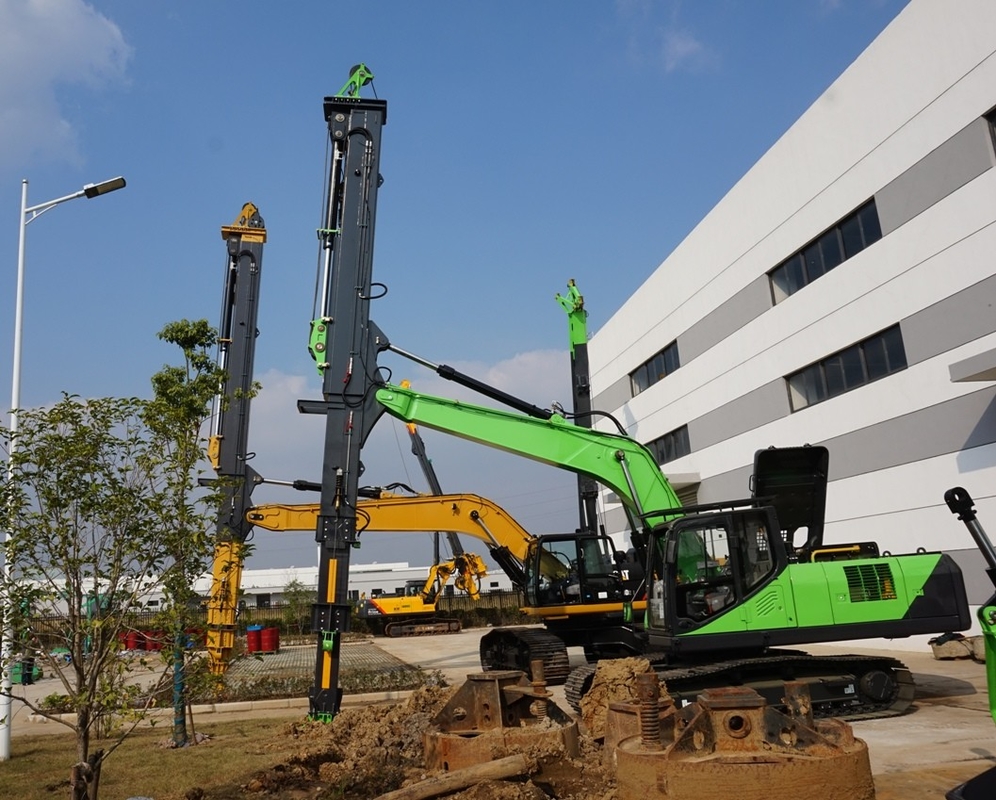

KM Series Clamshell Telescopic Arm Excavator Long Boom Piling Parts
KM Series Clamshell Telescopic Arm
,Excavator Arm Long Boom
,Piling Parts Clamshell Telescopic Arm
Excavator parts piling parts KM Series Clamshell Telescopic Arm long boom excavator arm
Product Feature
1.The Telescopic Excavator Boom is the ideal vertical stereo construction tool. It is convenient for use in small spaces. Some of the benefits of this boom include simple maintenance, low cost and high yield.
2.The clamshell is a bucket with two hinged jaws carried by a crane suspended from the boom by two lines: one raises and lowers the bucket, and the other pulls the jaws together against gravity for digging action. It is used chiefly for deep, narrow excavations.
Technical Specification
| Technical Specification of KM Telescopic Excavator Boom | |||
| Type | KM150 | KM220 | KM260 |
| System | Hydraulic cylinder&Wire rope | Hydraulic cylinder &Wire rope | Hydraulic cylinder&Wire rope |
| Weight | 3.6t | 4.6t | 5.6t |
| Bucket Capacity | 0.3m³ | 0.6m³ | 1.2m³ |
| Max. Digging Depth | 15200mm | 22490mm | 27180mm |
| Max. Digging Radius(Reach Max. Digging Depth) | 4670mm | 5845mm | 6400mm |
| Max.Vertical Digging Radius | 6430mm | 7445mm | 8530mm |
| Max. Digging Depth(Reach Max. Vertical Digging Radius) | 11825mm | 19920mm | 22370mm |
| Max. Operating radius | 7950mm | 9835mm | 11250mm |
| Max. Hoisting Height | 2870mm | 4465mm | 5770mm |
| Min. Operating Radius | 3980mm | 4485mm | 5460mm |
| Max. Operating Height | 9475mm | 13580mm | 16675mm |
| Overall Transport Length | 6908mm | 10685mm | 12390mm |
| Weight of Bucket | 520Kg | 990Kg | 1600Kg |
| Recommended excavator capacity | ≥15ton | ≥23ton | ≥36ton |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
