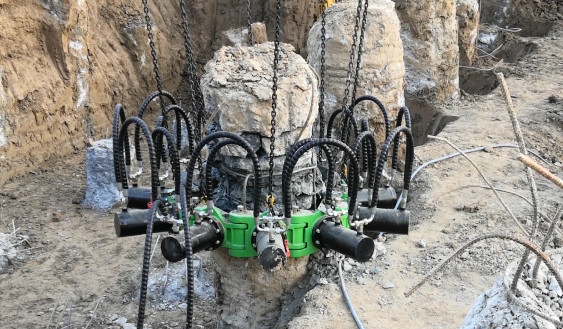

Hydraulic excavator pile breaker machine head cutter for construction foundation
Products Feature
1.A pile breaker is a construction tool used to cut foundation piles. The advantage of pile breakers is that they create a perfectly horizontal pile cutting finish without damaging the reinforcement or leaving cracks below the cutoff level.
2.After casting of the piles, the top portion of the pile is chipped out till the pile cap. Excavation is done around the pile area to facilitate removal of the extra pile portion by chipping. Pile Chipping is the extra pile that is above the cutoff level, which provided for good and sound concrete.
3.Pile Cut-off level is the actual level at which the piles below pier are made to be of the same level. The concrete of pile is cut-off at the specified level while the steel is kept projected in-to the pile cap to make an effective bond.
Technical Specification
| Technical specification |
13 modules combination
KP315
|
18 modules combination
KP380
|
| Pile diameter |
300~1050 mm |
600~1800 mm |
| Max. rod pressure |
280 kN |
600 kN |
| Max. cylinder stroke |
135 mm |
150 mm |
| Max. crowd pressure |
34.3 MPa |
34.3 MPa |
| Max. single cylinder flow |
20 L/min |
30 L/min |
| Quantity/8h |
60/8 h |
48/8 h |
| Max. single cutting height |
≤300 mm |
≤300 mm |
| Excavator capacity |
≥20 |
≥35 |
| Single module weight |
100 kg |
230 kg |
| Single module size |
520×444×316 mm |
696×566×350 mm |
| Operating size |
Φ2098×4000 mm |
Φ3316×4840 mm |
| Overall weight |
1.7 t |
4.5 t |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation
2: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
3: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
4: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
