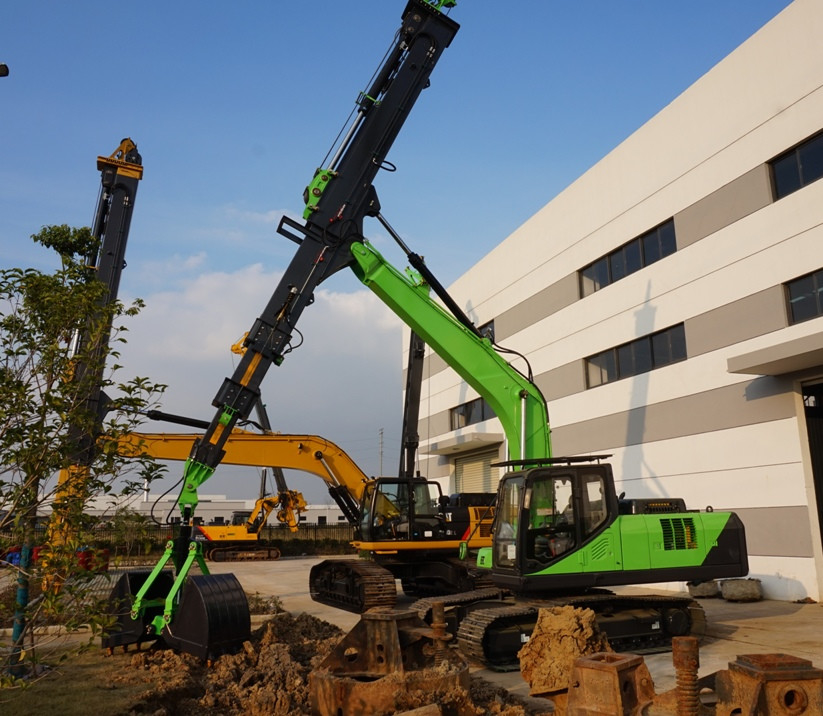

Factory Supply Excavator Long Reach Boom Arm Small Drilling Rig Machinery Telescopic Excavator Boom Arm
1. Quick and convenient city vertical solid construction tooling is convenient for small and solid construction space.
2. Widely used in the deep foundation pit of the bridge, Metro, and Metro Covered excavation,dredging excavation works.
3. Easy maintenance, low cost and high yield; reliable telescopic structure of steel wire rope,largely improving the wire rope service life.
4. Design in strict accordance with the safety standard of EU EN16228, satisfying the requirements of dynamic and static stability, ensuring construction safety.
Technical Specification
| Technical Specification of KM Telescopic Excavator Boom |
| Type |
KM150 |
KM220 |
KM260 |
| System |
Hydraulic cylinder&Wire rope |
Hydraulic cylinder &Wire rope |
Hydraulic cylinder&Wire rope |
| Weight |
3.6t |
4.6t |
5.6t |
| Bucket Capacity |
0.3m³ |
0.6m³ |
1.2m³ |
| Max. Digging Depth |
15200mm |
22490mm |
27180mm |
| Max. Digging Radius(Reach Max. Digging Depth) |
4670mm |
5845mm |
6400mm |
| Max.Vertical Digging Radius |
6430mm |
7445mm |
8530mm |
| Max. Digging Depth(Reach Max. Vertical Digging Radius) |
11825mm |
19920mm |
22370mm |
| Max. Operating radius |
7950mm |
9835mm |
11250mm |
| Max. Hoisting Height |
2870mm |
4465mm |
5770mm |
| Min. Operating Radius |
3980mm |
4485mm |
5460mm |
| Max. Operating Height |
9475mm |
13580mm |
16675mm |
| Overall Transport Length |
6908mm |
10685mm |
12390mm |
| Weight of Bucket |
520Kg |
990Kg |
1600Kg |
| Recommended excavator capacity |
≥15ton |
≥23ton |
≥36ton |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
