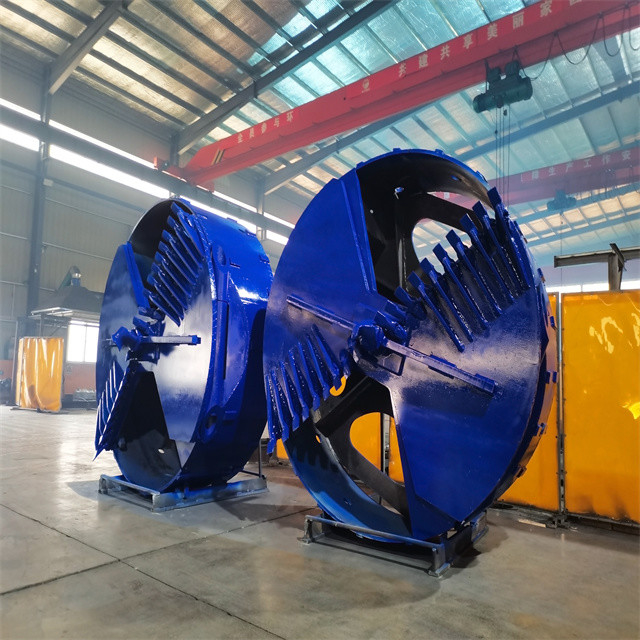

Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation
  • Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation
  • Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation
  • Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation
  • Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation
  • Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation
  • Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation

Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation

Place of Origin Jiangsu, China
Brand Name APIE
Certification CE and ISO9001
Model Number K2-1
Product Details
Product Name:
Drilling Bucket With Soil Drilling Teeth
Application:
Silt, Gravel, Clay And Highly Weathered Rock
Color:
Black,yellow Or As Required
Teeth Type:
Flat Teeth
Type:
Conical Or Straight Boring Tools
Drilling Diameter Range:
600-3000mm Or As Required
Processing Type:
Forging
Kelly Box:
130*130,150*150,200*200
Material:
GB-Q355B
Certification:
ISO
Highlight:

Diameter 2200mm Soil Drilling Bucket

,

Soil Drilling Bucket With Flat Teeth

,

Soil Drilling Bucket For Pile Foundation

Payment & Shipping Terms
Minimum Order Quantity
1 sets
Price
US$ 700-1000 Set
Packaging Details
One is nude packing and overall transport by sea with roll-on -roll ship.( L*W*H=9150*2600*3250mm); The other is host in the flat rack; kelly bar and bucket is also nude, meanwhile four wooden case which is put with mast, power head, follow-up frame and ma
Delivery Time
10-15days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
15 sets/month
Product Description

Versatile Soil Buckets for Efficient Drilling in Various Soil Conditions



Product Feature

1. Our soil buckets are designed to excel in drilling operations involving a wide range of soil compositions, including clay, silt, loose to medium dense sand, and gravel, up to coarse gravel. Their versatility allows for effective drilling in diverse soil types.



2. For drilling tasks in coarse gravel, we recommend using single-cut soil buckets. These buckets are specifically designed to handle the challenges posed by coarse gravel formations, ensuring efficient drilling performance.



3. In scenarios where cased or uncased drilling and larger diameter piles are involved, we recommend utilizing double-cut soil buckets. These specialized buckets provide enhanced stability and performance, catering to the demands of more complex drilling projects.



4. When encountering clay layers and sticky formations, single-bottom buckets are the preferred choice. These buckets are specifically designed to efficiently handle the challenges posed by such soil conditions, ensuring optimal drilling results.



Experience the reliability and versatility of our soil buckets, tailored to suit various soil conditions. Whether you're drilling in clay, silt, loose sand, or gravel, our buckets provide efficient drilling solutions for a wide range of applications.





Technical Specification of Drilling Buckets with soil drilling Teeth
drilling Dia. Shell HIT Shell Thickness Weight
(mm) (mm) (mm) (kg)
600 1200 16 640
800 1200 16 900
900 1200 16 1050
1000 1200 16 1100
1200 1200 16 1375
1500 1200 16 2000
1800 1000 20 2700
2000 800 20 3200
3000 800 20 7000




Product Details

Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation 0

Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation 1

Diameter 2200mm Soil Drilling Bucket Wirh Flat Teeth For Pile Foundation 2



FAQ

1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment



2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm, drilling tools



3: What's your service ?

We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
