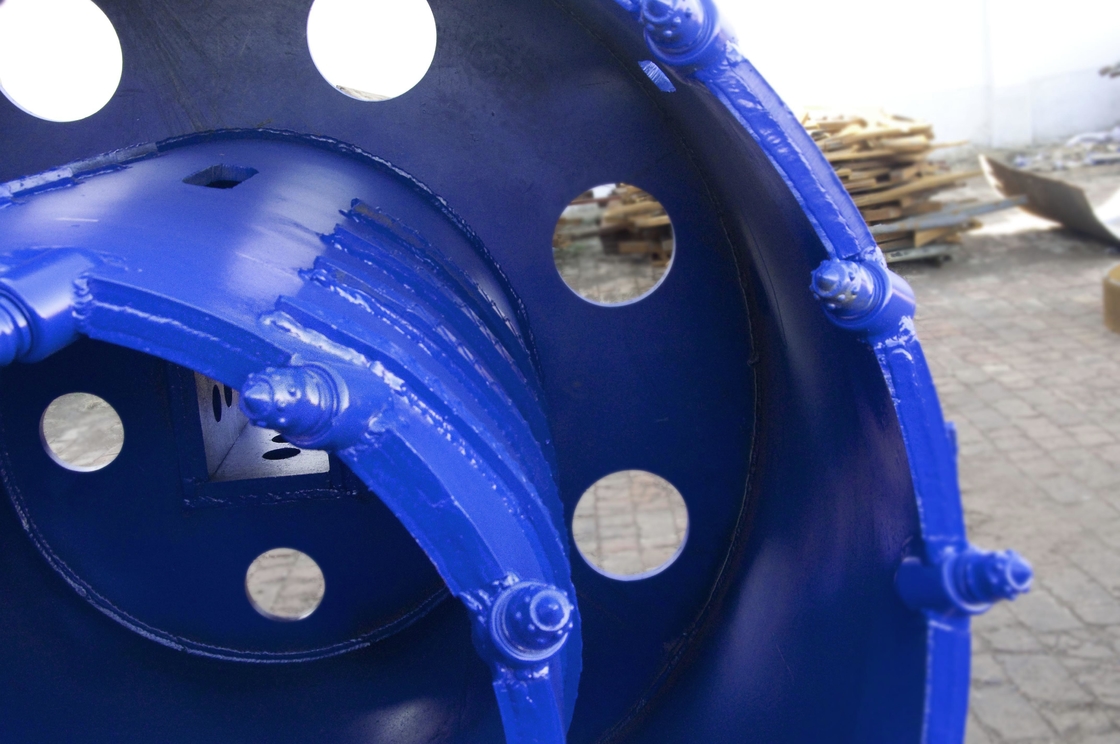

1200mm Borehole Drilling Double Tube Core Barrel Rig Tool
1200mm Borehole Core Barrel
,Double Tube Drilling Rig Core Barrel
,Core Barrel Drilling Rig Tool
1200mm borehole drilling tools double tube core barrel drilling rig tool
Product Feature:
2,Simple operation
3,High wear resistance
4,High drilling efficiency
5,High hardness
6,Good roundness of cylinder body
7,Long service life
Core Barrels are used when conventional augers are less effective or in conjuction with tapered rock augers for very hard rock drilling. The Core Barrel is designed with a thin cutting edge to maximise the penetration rate through less contact surface area having to be cut and removed.
| Technical Specification of Core Barrel with double shell | |||||
| drilling Dia. | Outer Shell HIT. | Inner Shell HIT. | Shell Thickness | Teeth.No. | Weight |
| (mm) | (mm) | (mm) | (mm) | (number) | (kg) |
| 1000 | 1200 | 1400 | 16 | 17 | 1115 |
| 1200 | 1200 | 1400 | 16 | 20 | 1323 |
| 1500 | 1200 | 1400 | 16 | 24 | 1775 |
| 1600 | 1200 | 1400 | 16 | 27 | 1926 |
| 1800 | 1000 | 1200 | 20 | 29 | 2361 |
| 2000 | 800 | 1000 | 20 | 33 | 2690 |
| 2200 | 800 | 1000 | 20 | 36 | 2969 |
| 2500 | 800 | 1000 | 20 | 42 | 3318 |
| 2800 | 800 | 1000 | 20 | 46 | 3997 |
| 3000 | 800 | 1000 | 20 | 49 | 4630 |
Product Details
FAQ
1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm, drilling tools
3: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
