Bucket Soil Excavator Attachments Rig Tool Rock Soil Drilling Bucket

Bucket Soil Excavator Attachments Rig Tool Rock Soil Drilling Bucket
Basic Properties
Place of Origin: Jiangsu, China
Brand Name: APIE
Certification: CE and ISO9001
Model Number: K2-1
Trading Properties
Minimum Order Quantity: 1 sets
Price: $1000+
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 sets/month
Tags:

900mm rock drilling bucket

1200mm rock bucket for piling

1050kg Drilling Rig Tool
Product Summary
Hot sell bucket soil excavator attachments rock soil drilling bucket drilling rig tool Product Feature 1.Shell thickness 16-20mm 2.Height of Bucket 800-1200 3.Fixed Bottoms plates thickness 40/50mm 4.Kelley box 200* 200 or 130*130 as per customer required 5.Used Soil Teeth TL25 or V-20 on request 6...
Product Custom Attributes
Highlight

3000mm Soil Drilling Bucket

,

Bucket Soil Excavator Attachments

,

Rig Tool Rock Soil Drilling Bucket

Product Name:
Drilling Bucket With Soil Drilling Teeth
Application:
Silt, Gravel, Clay And Highly Weathered Rock
Color:
Black,yellow Or As Required
Teeth Type:
Flat Teeth
Type:
Conical Or Straight Boring Tools
Drilling Diameter Range:
600-3000mm Or As Required
Processing Type:
Forging
Kelly Box:
130*130,150*150,200*200
Teeth.No:
4-24
Max.weight:
7000
Product Description
Detailed Specifications & Features

Hot sell bucket soil excavator attachments rock soil drilling bucket drilling rig tool



Product Feature

1.Shell thickness 16-20mm
2.Height of Bucket 800-1200
3.Fixed Bottoms plates thickness 40/50mm
4.Kelley box 200* 200 or 130*130 as per customer required
5.Used Soil Teeth TL25 or V-20 on request
6.Big dia bucket with Auto Open mechanism & small dia bucket with manual opening mechanism.
7.Wear protection hard facing standard or wear strip (Optional)



Product Description

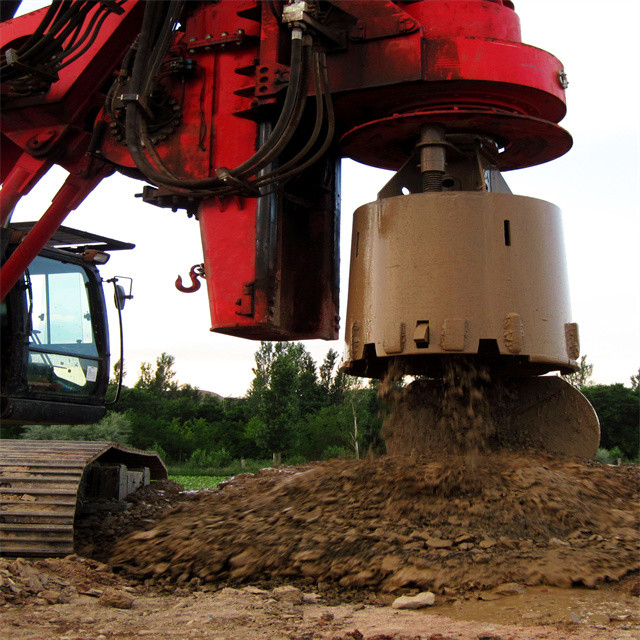

Soil Bucket is suitable for drilling in low density sand silt, soft to hard silt clay, Dense to very dense sand and gravel, Coarse gravel, For fine grained soil, High & low plasticity clay for drilling near waterbeds or drilling with bentonies. The buckets are available in Double bottom, Single bottom, Centrifugal type with conical & cylindrical in shape for any diameter to drill with or without casing.



Technical Specification of Drilling Buckets with soil drilling Teeth
drilling Dia. Shell HIT Shell Thickness Weight
(mm) (mm) (mm) (kg)
600 1200 16 640
800 1200 16 900
900 1200 16 1050
1000 1200 16 1100
1200 1200 16 1375
1500 1200 16 2000
1800 1000 20 2700
2000 800 20 3200
3000 800 20 7000




Product Details

Bucket Soil Excavator Attachments Rig Tool Rock Soil Drilling Bucket 0

Bucket Soil Excavator Attachments Rig Tool Rock Soil Drilling Bucket 1

Bucket Soil Excavator Attachments Rig Tool Rock Soil Drilling Bucket 2



FAQ

1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment



2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm, drilling tools



3: What's your service ?

We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
