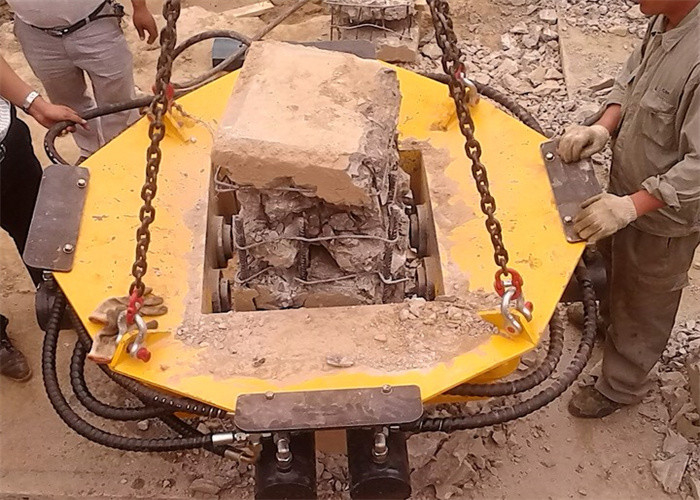

Hydraulic Square Pile Breaker useful tool for blasting and traditional crushing methods
Products Description
1. The modular design makes the pile breaker extremely easy to crush concrete piles of different diameter at the job site. Additionally, each module contains a separate cylinder and brazing rod system. With the help of hydraulic pressure, the oil cylinder drives the brazing rod to squeeze the pile.
2. Using advacced modular design, it can be used for crushing piles of different diameters by changing the module combination quantity;
3. It can be installed on a large variety of construction machinery, realizing the versatility and economy.
Technical Specification
| KP400S/KP450S/KP500S Technical specification |
| Type |
KP400S |
KP450S |
KP500S |
| Pile length (mm) |
250~400 |
350~450 |
400~500 |
| Max. rod pressure (kN) |
280 |
280 |
280 |
| Max. cylinder stroke (mm) |
135 |
135 |
135 |
| Max. crowd pressure (MPa) |
34.3 |
34.3 |
34.3 |
| Max. single cylinder flow(L/min) |
20 |
20 |
20 |
| Quantity/8h |
160 |
180 |
200 |
| Max. single cutting height(mm) |
≤300 |
≤300 |
≤300 |
| Excavating capacity (t) |
≥7 |
≥8 |
≥10 |
| Operating size (mm) |
1440×1440×1500 |
1490×1490×1500 |
1588×1588×1500 |
| Overall weight (t) |
0.55 |
0.57 |
0.8 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
