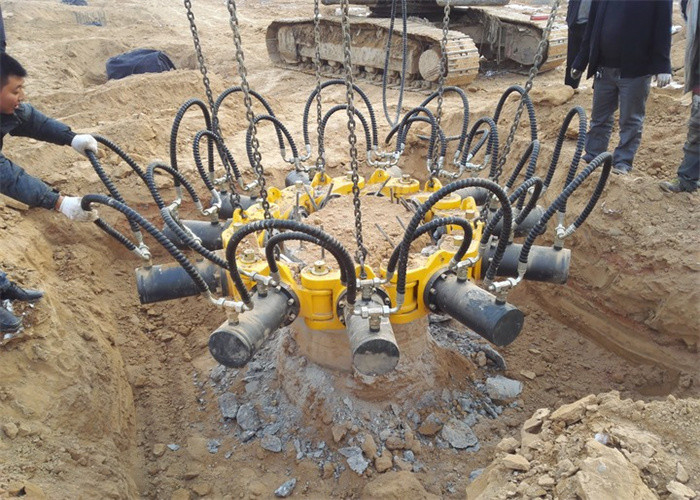

China Factory Concrete Pile Cutting Machine: 1800mm Round Hydraulic Pile Breaker
Product Features:
1. The hydraulic concrete pile cutting machine is a highly efficient, cost-effective, clean, and advanced system designed for cutting concrete outcrops and foundation piles.
2. Featuring an advanced modular design, it offers the flexibility to crush piles of different diameters by adjusting the module combination quantity.
3. This versatile machine can be easily installed on a wide range of construction machinery, providing exceptional adaptability and economic value.
Experience the power and precision of the China Factory Concrete Pile Cutting Machine. With its hydraulic capabilities and 1800mm round hydraulic pile breaker, it efficiently cuts through concrete outcrops and foundation piles. The modular design allows for easy adjustment to accommodate piles of various diameters, ensuring flexibility and versatility. Installed on different construction machinery, this machine proves to be a cost-effective solution for a range of projects. Trust in the reliability and efficiency of the China Factory Concrete Pile Cutting Machine for your construction needs.
Technical Specification
| Technical specification |
13 modules combination
KP315
|
18 modules combination
KP380
|
| Pile diameter |
300~1050 mm |
600~1800 mm |
| Max. rod pressure |
280 kN |
600 kN |
| Max. cylinder stroke |
135 mm |
150 mm |
| Max. crowd pressure |
34.3 MPa |
34.3 MPa |
| Max. single cylinder flow |
20 L/min |
30 L/min |
| Quantity/8h |
60/8 h |
48/8 h |
| Max. single cutting height |
≤300 mm |
≤300 mm |
| Excavator capacity |
≥20 |
≥35 |
| Single module weight |
100 kg |
230 kg |
| Single module size |
520×444×316 mm |
696×566×350 mm |
| Operating size |
Φ2098×4000 mm |
Φ3316×4840 mm |
| Overall weight |
1.7 t |
4.5 t |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation
2: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
3: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
4: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
