100W 150W Bottom Feed Vibroflot System Vibroflotation Technique Vibroflot Equipment

100W 150W Bottom Feed Vibroflot System Vibroflotation Technique Vibroflot Equipment
Basic Properties
Place of Origin: Jiangsu, China
Brand Name: APIE
Certification: CE and ISO9001
Model Number: BJV-426
Trading Properties
Minimum Order Quantity: 1 sets
Price: $1100+
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 sets/month
Tags:

75W Electrical Vibroflot

6 bar vibroflotation compaction

150W Electrical Vibroflot
Product Summary
Professional Manufacturer Supporting Device Bottom Feed Vibroflot System Vibroflotation Bottom feed Vibroflot 1, Equipped with a high-power 180KW vibrator. It has superior dynamic performance in the process of drilling and compaction. 2,The unique design of bypass pipeline can realize multiple ...
Product Custom Attributes
Highlight

100W vibroflotation technique

,

150W vibroflotation technique

,

Electrical vibroflot equipment

Showroom Location:
Viet Nam, Peru, Indonesia, Mexico, Russia, Thailand, Australia
Warranty::
1 Year
Condition:
New
Machinery Test Report::
Provided
Video Outgoing-inspection::
Provided
Product Name:
Electrical Vibroflot
Power:
75W/100W/130W/150W
Types Of Piling Machinery:
Rotary Pilling Rig
Centrifulgal Force:
200-300kN
System Pressure:
6bar
Product Description
Detailed Specifications & Features

Professional Manufacturer Supporting Device Bottom Feed Vibroflot System Vibroflotation



Bottom feed Vibroflot

1, Equipped with a high-power 180KW vibrator. It has superior dynamic performance in the process of drilling and compaction.
2,The unique design of bypass pipeline can realize multiple construction methods including: dry method, water method and water-air linkage method.
3,The special circulating water cooling system can protect the motor to run normally for a longer time during dry method construction.

Specification
Max rotation speed 1200-1800rpm
Working pile diameter 900-1200mm
Frequency 40-60Hz
System air pressure 6 bar
Centrifulgal force 200-300kN
Hopper capacity 1.2m3
Feeding pipe inner dia DN25 mm
Electrical control mode Inverter drive
Cooling mode Circulating water cooling
Air flow rate 10m3/min



Product Details

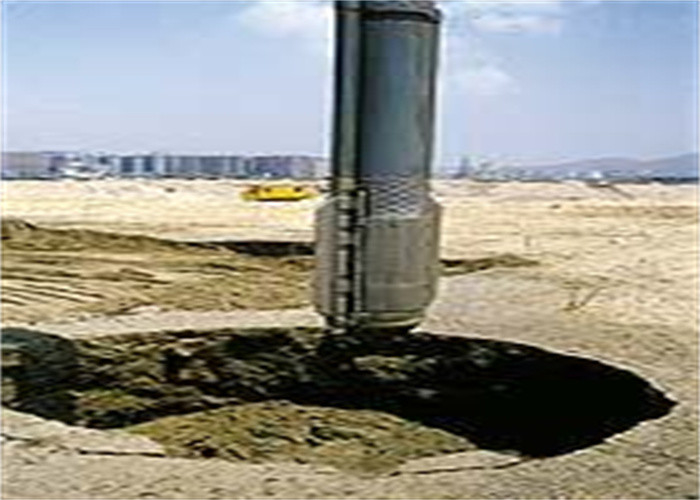

100W 150W Bottom Feed Vibroflot System Vibroflotation Technique Vibroflot Equipment 0

100W 150W Bottom Feed Vibroflot System Vibroflotation Technique Vibroflot Equipment 1



FAQ

1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment



2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm, drilling tools



3: What's your service ?

We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
