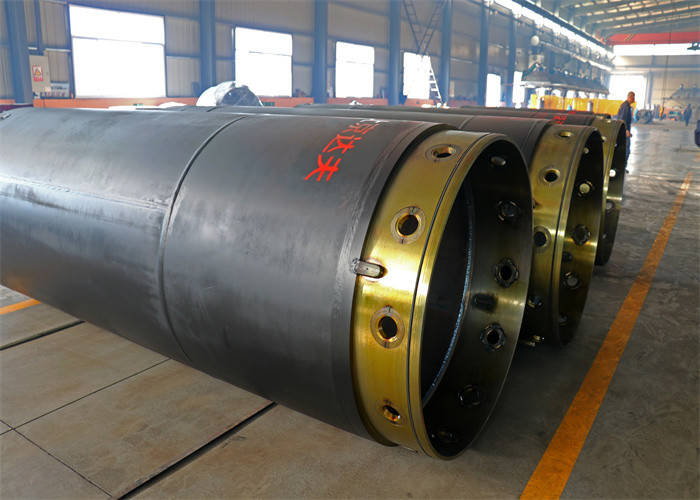

APIE Arms asing hydraulic pile machine 800mm drivers accessories
Product performance
Greater embedding pressure can be achieved by Casing oscillator instead of Casing Drive
Adapter, Casing can be embedded even in hard layer.Casing oscillator owns such merits as strong adaptability to geology, high quality of completed pile, low noise, no mud contamination, slight influence to former foundation, easy control, low cost, etc. It owns advantages in following geological conditions: instable layer, underground slip layer, underground river, rock formation, old pile, erratic boulder, quicksand, foundation of emergency and temporary building.
It is especially suitable for coast, beach, old city wasteland, desert, mountain area and the place surrounded by buildings.
| Casing Dia. |
Inner Shell THK. |
Outer Shell THK. |
Casing THK. |
Bolts No |
Weight(3 meter) |
| 680-600 |
8 |
12 |
40 |
8 |
1090 |
| 880-800 |
8 |
12 |
40 |
10 |
1335 |
| 1080-1000 |
10 |
16 |
40 |
10 |
2180 |
| 1280-1200 |
10 |
16 |
40 |
12 |
2480 |
| 1600-1500 |
12 |
20 |
50 |
16 |
3910 |
| 1800-1700 |
12 |
20 |
50 |
16 |
4435 |
| 2000-1880 |
16 |
25 |
60 |
18 |
5900 |
| 2500-2380 |
16 |
25 |
60 |
18 |
7310 |
Note: All measurements are in millimeters (mm). The weight unit is kilograms (kg)
Product Details
FAQ
1: How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm, drilling tools
3: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
