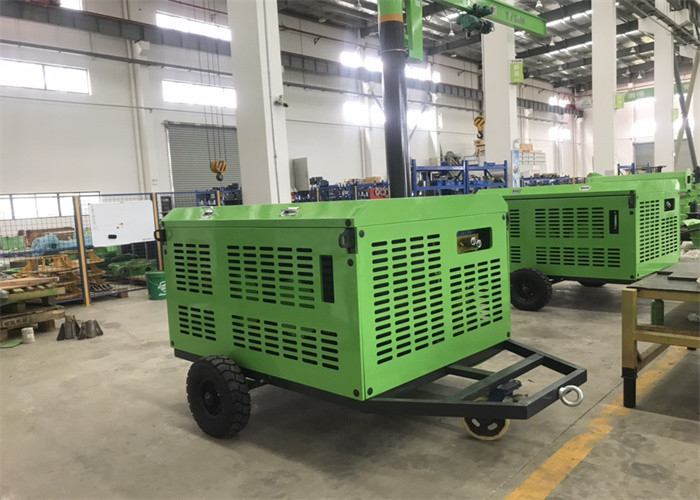

Versatile Hydraulic Power Packs and Installation Steps for Hydraulic Pile Breakers
Production details
1. Discover our wide range of hydraulic power packs designed to perfectly match various types of hydraulic pile breakers. Whether you require a compact power pack for smaller breakers or a more robust one for larger models, we have the right solution for your needs.
2. In addition to providing versatile hydraulic power packs, we also offer detailed installation steps for both the hydraulic pile breaker and the power pack. Our step-by-step instructions ensure a smooth and hassle-free installation process, allowing you to efficiently set up your equipment and start your operations.
Technical Specification
| Technical specification of KPS37 and KPS22 |
| Model |
KPS37 |
KPS22 |
| Working medium |
32# or 46# anti-wear hydraulic oil |
| Fuel tank volume |
470 L |
320 L |
| Max. flow rate |
240 L/min |
120 L/min |
| Max. operating pressure |
315bar |
315 bar |
| Motor power |
37 KW |
22 KW |
| Motor frequency |
50Hz |
50 Hz |
| Motor voltage |
380 V |
380 V |
| Motor working speed |
1460 rpm |
1460 rpm |
| Working weight (full tank) |
1500 kg |
850 kg |
| Wireless control distance |
200m |
200m |
FAQ
1: What is the Warranty of the Hydraulic power pack?
The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
