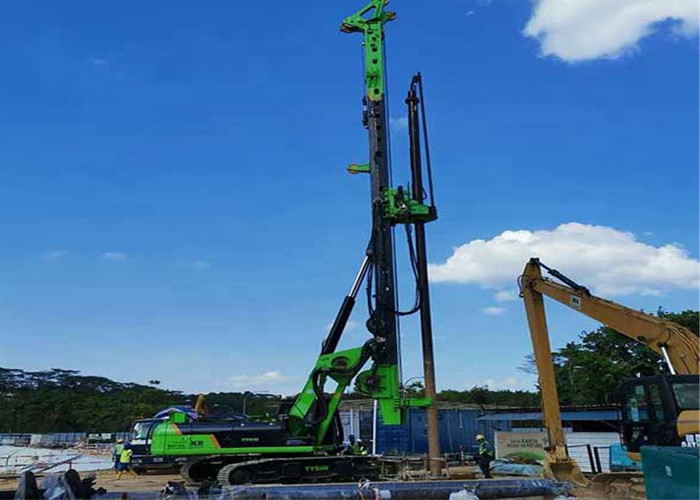

20m 51m Multifunctional Drilling Rig CFA 34.3MPa Hydraulic Rotary Drill Head
20m Multifunctional Drilling Rig
,51m Multifunctional Drilling Rig
,34.3MPa hydraulic rotary drill head
TOP foundation equipment, SOILMEC crawler small/mini CFA rotary drilling rig KR220M
Product description
1. CAT chassis
2. GB certification and EU EN 16228 standard certification
3. New and upgraded Caterpillar chassis
4. The multi-stage vibration reduction design of the power head results in better vibration reduction
5. Strong rotary braking performance
6. New generation electronic control platform
Technical Specification
| Technical specification of KR220M rotary drilling rig(CFA &rotary drilling rig) | ||
| CFA construction method | Max. diameter | 800mm |
| Max. drilling depth | 20m | |
| Max. Diameter | 460KN | |
| Rotary drilling construction method | Max. Diameter | 1800mm |
| Max. drilling depth | 51m | |
| Main winch line pull | 230KN | |
| Main winch line speed | 60m/min | |
| Working parameters | Max. torque | 220KN.m |
| Auxiliary winch line pull | 2400KN | |
| Auxiliary winch line speed | 90m/min | |
| Mast inclination(lateral) | ±3° | |
| Mast inclination(forward) | 5° | |
| Max. operating pressure | 34.3MPa | |
| Pilot pressure | 3.9MPa | |
| Operating speed | 2.8km/h | |
| Operating force | 204KN | |
| Operating size | Operating height | 23965mm(CFA) |
| Operating width | 4300mm | |
| Transport size | Transport height | 3315mm |
| Transport width | 3000mm | |
| Transport length | 15620mm | |
| Total weight | Overall weight | 60t |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
