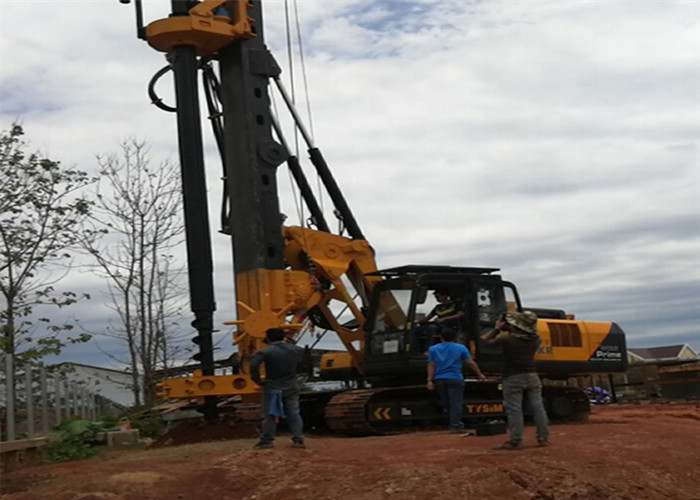

APIE CFA Rotary Pile Driving Machine KR150M: A Cutting-Edge Crawler Hydraulic Drilling Rig
Key Features:
1. Engine: Equipped with a powerful Cummins engine sourced from the USA, our drilling rig ensures optimal working performance and efficiency.
2. Certification: Our products meet the stringent requirements of GB certification and EU EN16228 standard certification. This demonstrates our commitment to superior dynamic and static stability design, prioritizing construction safety.
3. Chassis: The drilling rig features a newly upgraded caterpillar chassis of the highest quality. This ensures exceptional overall machine performance, delivering reliable and smooth operation.
4. Power Head: Our power head is thoughtfully designed with an additional option for drilling through rock formations. This feature reduces the operator's workload and enhances operational efficiency.
Technical Specification
| Technical specification of KR150M rotary drilling rig |
| Torque |
150 kN.m |
| Max. diameter |
750 mm |
| Max. drilling depth |
17 m |
| Max. crowd pull |
400 kN |
| Auxiliary winch line pull |
60 kN |
| Auxiliary winch line speed |
79 m/min |
| Mast inclination(lateral) |
±5° |
| Mast inclination(forward) |
5° |
| Mast inclination(backward) |
15° |
| Max. operating pressure |
34.3 MPa |
| Pilot pressure |
4 Mpa |
| Operating height |
21160 mm |
| Operating width |
4100 mm |
| Transport height |
3305 mm |
| Transport width |
3100 mm |
| Transport length |
13000 mm |
| Overall weight |
42 t |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
