Multifunctional Drilling Rig
>
|
|
| Place of Origin | Jiangsu, China |
| Brand Name | APIE |
| Certification | CE and ISO9001 |
| Model Number | KR80M |
Product Description
Our hydraulic CFA multifunctional piling rig screw pile driver machine, manufactured by APIE, is a top-of-the-line equipment designed for construction works. It features a powerful Cummins engine imported from the USA, maximizing its working performance and ensuring optimal productivity.
Certification is a crucial aspect of our product. Our piling rig has obtained GB certification and EU EN16228 standard certification, reflecting our commitment to meeting industry safety standards. The machine is designed with better dynamic and static stability, ensuring a safe construction environment.
The chassis of our piling rig has been newly upgraded with a high-quality caterpillar chassis. This enhancement guarantees the best overall machine performance, providing stability and durability in various working conditions.
The power head of our machine is specifically designed with an additional option for drilling rock. This feature reduces the operational intensity for the operator, enhancing efficiency and ease of use during rock drilling operations.
Experience the exceptional performance and safety of our APIE hydraulic CFA multifunctional piling rig screw pile driver machine. With its powerful engine, safety certifications, upgraded chassis, and user-friendly power head, it delivers outstanding results in construction projects. Don't miss the opportunity to improve your construction works with this high-quality piling rig.
Technical Specification
| Rotary Drilling Rig Technical Parameters | |
| Max Torque | 80kN.m |
| Max Drilling diameter | 1m |
| Max Drilling Depth | 22m |
| CFA Technical Parameters | |
| Max Drilling diameter | 600mm |
| Max Drilling Depth | 12m |
| Hydraulic Impact Hammer Technical Parameters | |
| Max.Impact Height | 12m |
| Max. clamping force | 556kN |
| Max.pulling pile force | 120kN |
| Max. Impact force | 343kN |
| CFA/Rotary Drilling Rig Technical Parameters | |
| Main winch pull force | 140kN |
| Auxiliary winch pull force | 35kN |
| Max Stroke | 9000mm |
| Max Thrust | 120kN |
| Operating Height | 16000mm |
| Operating Width | 2600mm |
| Transport Height | 3070mm |
| Transport Width | 2600mm |
| Transport Length | 10535mm |
| Total Weight | 24t |

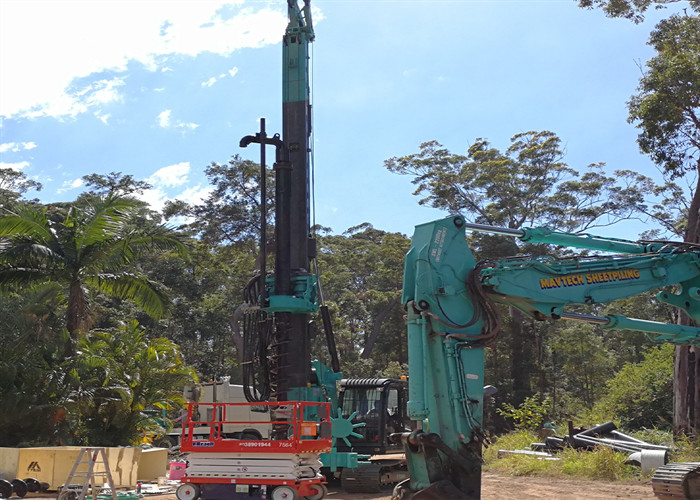

Product details
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
