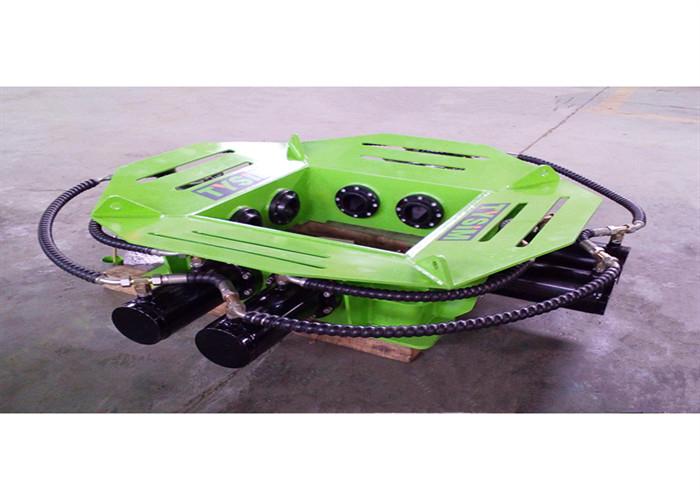

Concrete 20L/Min 0.55t Hydraulic Pile Breaker Square 250mm Pile Head Breaker
20L/min Hydraulic Pile Breaker
,0.55t Hydraulic Pile Breaker
,250mm pile head breaker
Efficient Equipment for Crushing Foundation Piles
1. The leading hydraulic pile breaker/cutter, incorporating five patented technologies, fills a significant gap in the domestic market by providing the most efficient solution for crushing foundation piles.
2. Designed with an advanced modular approach, this equipment can easily adapt to various pile diameters by adjusting the quantity and combination of modules.
3. Its versatile nature enables installation on a wide range of construction machinery, ensuring cost-effectiveness and flexibility in diverse construction scenarios.
Technical Specification
| KP400S/KP450S/KP500S Technical specification | |||
| Type | KP400S | KP450S | KP500S |
| Pile length (mm) | 250~400 | 350~450 | 400~500 |
| Max. rod pressure (kN) | 280 | 280 | 280 |
| Max. cylinder stroke (mm) | 135 | 135 | 135 |
| Max. crowd pressure (MPa) | 34.3 | 34.3 | 34.3 |
| Max. single cylinder flow(L/min) | 20 | 20 | 20 |
| Quantity/8h | 160 | 180 | 200 |
| Max. single cutting height(mm) | ≤300 | ≤300 | ≤300 |
| Excavating capacity (t) | ≥7 | ≥8 | ≥10 |
| Operating size (mm) | 1440×1440×1500 | 1490×1490×1500 | 1588×1588×1500 |
| Overall weight (t) | 0.55 | 0.57 | 0.8 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
3: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
4: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
