220kNm 51m Construction Hydraulic Pile Machine Earth Auger Borehole Drilling Machine
220 kNm Hydraulic Pile Machine
,Construction Hydraulic Pile Machine CE
,51m hydraulic borehole drilling machine

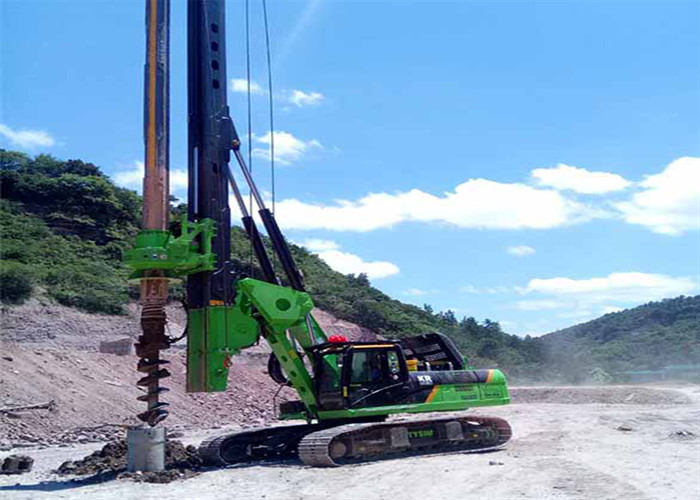

APIE KR220C Construction Projects Earth Auger Borehole Hydraulic Drilling Piling Rig Machine
Our Feature
Engine
USA powerful Cummins engine, to maximize its working performance.
Certification
Our products have passed GB certification and EU EN16228 standard certification, better dynamic and static stability design to ensure construction safety.
Chassis
New and upgraded caterpillar chassis with high quality to ensure the best performance of the whole machine.
Power head
The power head is designed with an extra option for drilling rock to recuce the operation intensity of the operator
| Performance Parameter | Unit | Value |
| Max. torque | kN.m | 220 |
| Max. drilling diameter | mm | 1800/2000 |
| Max. drilling depth | m | 64/51 |
| Working speed | rpm | 6~28 |
| Max. cylinder pressure | kN | 210 |
| Max. hoist capacity | kN | 220 |
| Main winch pull force | kN | 230 |
| Main winch speed | m/min | 60 |
| Auxiliary winch pull force | kN | 90 |
| Auxiliary winch speed | m/min | 60 |
| Max. cylinder stroke | mm | 5000 |
| Mast side raking | ° | ±5 |
| Mast raking forward | ° | 5 |
| System pressure | mpa | 35 |
| Pilot pressure | mpa | 4 |
| Max. walking speed | km/h | 2.2 |
| Max. pull force | kN | 430 |
| Operating height | mm | 21082 |
| Operating width | mm | 4300 |
| Transport height | mm | 3360 |
| Transport width | mm | 3000 |
| Transport length | mm | 15300 |
| Total weight | t | 66 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
3: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
