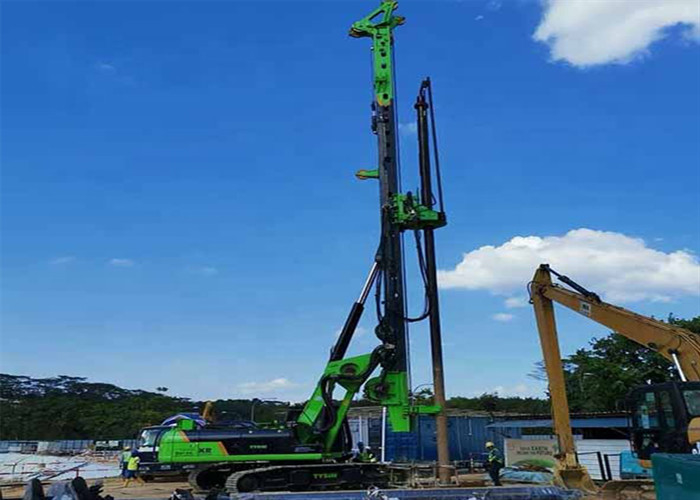

220kNm 28rpm Hydraulic Earth Rotary Crawler Mounted Drill Rig Machine
220kNm 28rpm Hydraulic Earth Rotary Crawler Mounted Drill Rig Machine
Basic Properties
Place of Origin:
Jiangsu, China
Brand Name:
TYSIM
Certification:
CE and ISO9001
Model Number:
KR220C
Trading Properties
Minimum Order Quantity:
1 sets
Price:
$350000+
Payment Terms:
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:
2 sets/month
Product Summary
Professional Manufacturer Construction Works Hydraulic Piling Rotary Excav Earth Drill Auger Rig For Sale Product description 1. Obtained more than 40 patents and exported to more than 40 countries. 2. A professional R&D team with 10 years of industry experience. 3. Passed ISO9001 quality management ...
Product Custom Attributes
Highlight
220kNm crawler mounted drill rig
,Hydraulic crawler mounted drill rig
,28rpm Earth rotary drilling rig machine
Local Service Location:
Canada, United States, Philippines, Kenya, Singapore
Marketing Type:
New Product 2022
Max Torque:
220 KN.m
Max. Drilling Depth:
64/51m
Main Winch Speed:
60m/min
System Pressure:
35mpa
Working Speed:
5-26rmp
Max. Walking Speed:
2.2km/h
Warranty:
1year
Total Weight:
66t
Max Drilling Diameter:
1800/2000mm
Condition:
New
Product Description
Detailed Specifications & Features
Professional Manufacturer Construction Works Hydraulic Piling Rotary Excav Earth Drill Auger Rig For Sale
Product description
1. Obtained more than 40 patents and exported to more than 40 countries.
2. A professional R&D team with 10 years of industry experience.
3. Passed ISO9001 quality management system certification, obtained CE certification.
4. Engineer overseas service. Ensure the quality of the machine and good after - sales service.
5. Manufacturer of the most complete series of small rotary drilling rig in China.
6. The largest export volume of small rotary drilling rig in China.
7. The most rotary drilling rigs in Australian market.
8. First brand of small rotary drilling rig in Thailand market
| Performance Parameter | Unit | Value |
| Max. torque | kN.m | 220 |
| Max. drilling diameter | mm | 1800/2000 |
| Max. drilling depth | m | 64/51 |
| Working speed | rpm | 6~28 |
| Max. cylinder pressure | kN | 210 |
| Max. hoist capacity | kN | 220 |
| Main winch pull force | kN | 230 |
| Main winch speed | m/min | 60 |
| Auxiliary winch pull force | kN | 90 |
| Auxiliary winch speed | m/min | 60 |
| Max. cylinder stroke | mm | 5000 |
| Mast side raking | ° | ±5 |
| Mast raking forward | ° | 5 |
| System pressure | mpa | 35 |
| Pilot pressure | mpa | 4 |
| Max. walking speed | km/h | 2.2 |
| Max. pull force | kN | 430 |
| Operating height | mm | 21082 |
| Operating width | mm | 4300 |
| Transport height | mm | 3360 |
| Transport width | mm | 3000 |
| Transport length | mm | 15300 |
| Total weight | t | 66 |
FAQ
1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is a year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
2: What can you buy from us?
Rotary Drilling Rig,Hydraulic Pile Breaker,Clamshell Telescopic Arm
3: Why should you buy from us not from other suppliers?
APIE is the only one focused on the development civil for small and medium-sized enterprise, which is specialized in the rotary drilling rig and obtains more than 40 pile driving products patent. APIE core team is instituted by the senior researchers.
